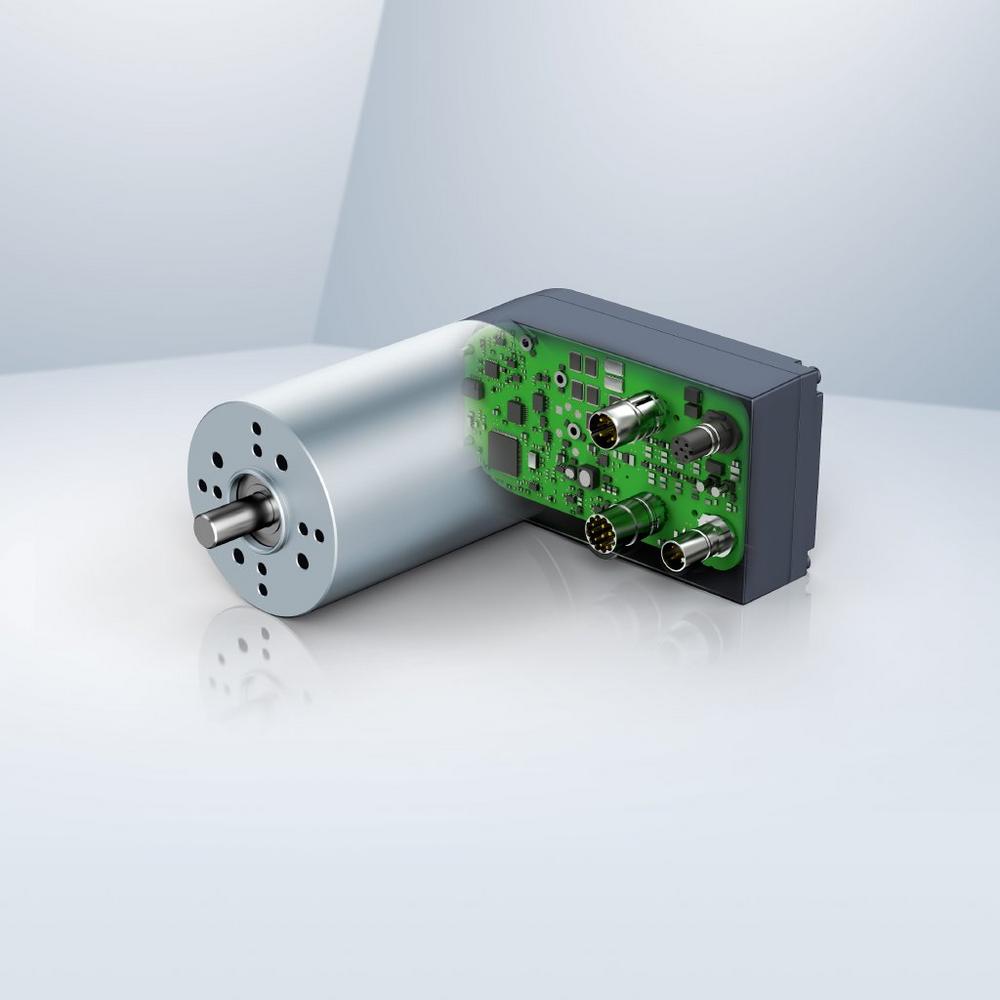

These compact drive systems offer a cost optimized alternative to classic AC servomotors in many applications. In comparison to AC standard motors with frequency converters, this series convinces with higher efficiency as well as power density.
The ECI 63.xx K5 supports the communication and movement profiles according to IEC 61800-7 (DS402). This means that the drive can be operated in positioning, speed, current or torque control. In addition, the drive can be freely programmed, similar to an SPS, thanks to the integrated intelligence. For example, a function can be implemented in such a way that the drive can be controllable almost arbitrarily via the integrated I/Os without the necessity of drive commands via CANopen. The drive can also be used as CAN master, thanks to the integrated SPS functionality. This allows networks to be constructed in less complex applications that also work as standalone applications without superordinate SPS. The possibility of forgoing a superordinate SPS, has a positive impact on the cost Situation.
The ebm-papst Group is the world’s leading manufacturer of fans and motors. Since it was founded, the technology company has continuously set global industry standards: from the digital interconnection of electronically controlled EC fans to aerodynamic improvements for fan blades to the use of eco-friendly materials.
In fiscal year 2016/17, the company achieved sales of almost €1.9 billion. ebm-papst employs over 14,000 people at 26 production sites (e.g. in Germany, China and the US) and in 49 sales offices worldwide. Fans and motors from the world market leader are used in many industries, including ventilation, air conditioning and refrigeration, household appliances, heating, automotive and drive engineering.
