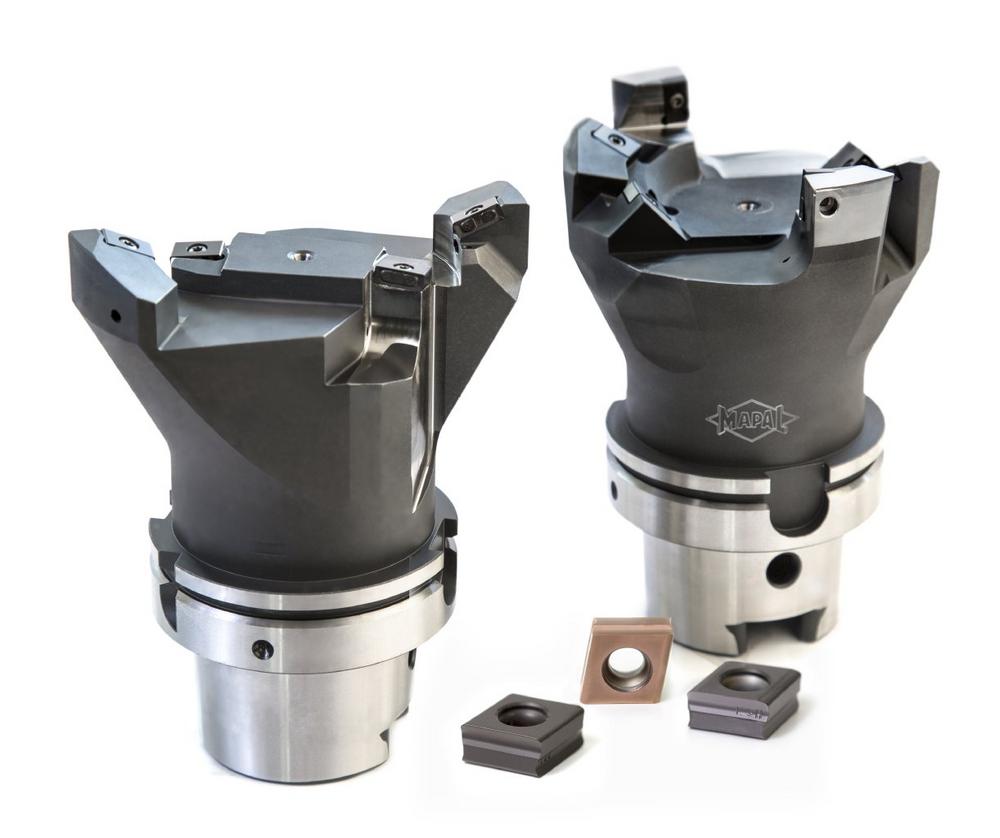

For the new ISO indexable inserts, MAPAL has not only developed optimum coatings on their in-house coating line, but also optimised the carbide substrate of the inserts and the edge rounding for machining. It can be choosen between PVD- and CVD-coated cutting materials in accordance with the prevailing general conditions, such as the material, stability of the machine, coolant and clamping situation as well as the possibility of interrupted cuts occurring. The cutting materials differ depending on the ductility of the carbide substrate used. CVD-coated ISO indexable inserts are the standard for all boring processes and are sure to impress with their high wear resistance. They offer the potential for a significant increase in cutting speed and productivity, even in dry machining applications. PVD-coated cutting materials are available for extremely challenging conditions, such as interrupted cuts or unstable machine ratios. This is due to the fact that they strike with a particularly good balance between ductility and wear resistance, thus ensuring reliable machining. The new ISO indexable inserts complete the range. By the end of last year, MAPAL had already introduced a new series of cutting materials for boring cast iron.
In both cast iron machining and steel machining, significantly better results are achieved when boring with the new ISO indexable inserts than with those previously used. In cast iron machining, a new series of cutting materials mean an increase in tool life of up to 100 percent (depending on the application). When machining steel and turbochargers, the increase is, on average, 50 percent greater. In production, cost-per-part is reduced accordingly.
Together with the special and standard ISO indexable inserts, MAPAL’s new series of cutting materials also includes tangential “press-to-size” ISO indexable inserts. These cost-effective inserts ideally complement the high-precision ground inserts. They are used for applications with larger permissible tolerances, as is generally the case for roughing. This means there are ISO indexable inserts with the appropriate cutting material for boring cast iron, steel and stainless steel available to suit every need when it comes to precision or costs, providing cost-effective machining.
MAPAL – tooling the customer’s success
MAPAL Präzisionswerkzeuge Dr. Kress KG is one of the leading international suppliers of precision tools for the machining of practically all materials. The company founded in 1950 supplies leading customers from the automotive and aerospace industries and from machine and plant engineering. With its innovations the family-owned company sets trends and standards in production and machining technology. MAPAL sees itself as a technology partner, supporting its customers with the development of efficient and resource-conserving machining processes using individual tool concepts. The company is represented with production facilities, sales subsidiaries and representatives in 44 countries worldwide. In 2016 the MAPAL Group had 5,000 employees, generating sales of EUR 575 million.
