CONEC SuperCon® intelligent hybrid connector technology

Due to the constantly increasing cost pressure and the miniaturization of end devices, in combination with an increasing data volume and high transmission speeds, new solutions for more efficiency in the field of wiring are in demand.

Wiring of the power supply and the control of motors and servo drives is exemplary. Until now the conventional approach, each individual motor is wired separately and elaborately to the control cabinet, with the decentralised approach, many consumers are linked with standard connecting cables via a "daisy chain". The special efficiency is that with the newly developed SuperCon series, a compact hybrid connector system has been created, combining and transmitting power supply and data transmission via a specially developed hybrid cable. This technology is equivalent to the modern connection and interface wiring technology.

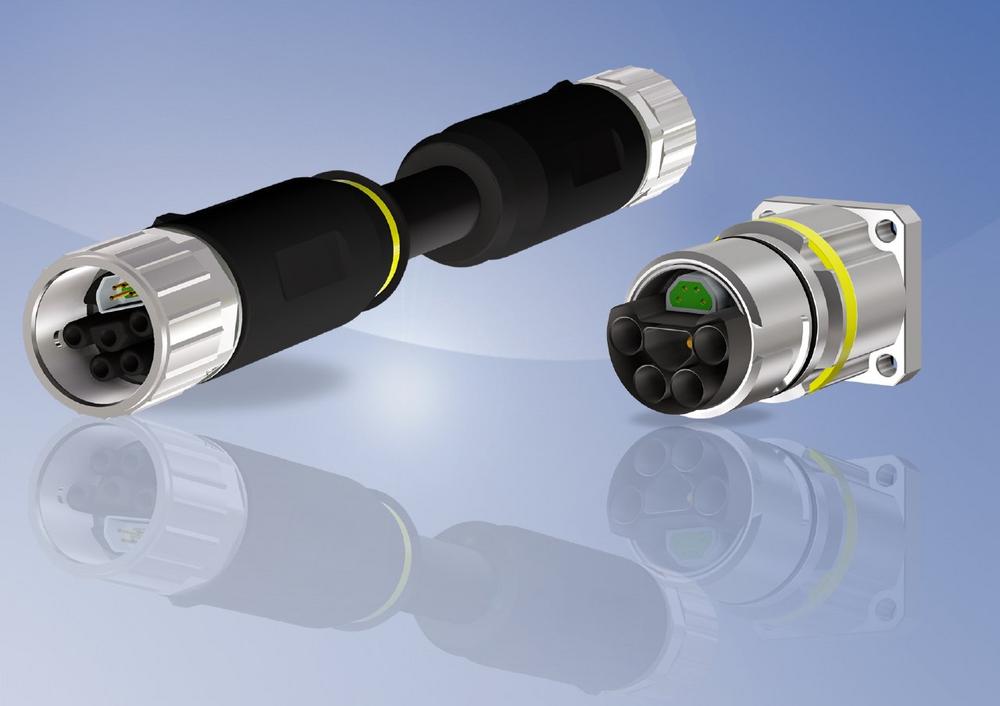

CONEC supplements the existing sizes B12 und B17 by sockets and connectors, overmoulded, size B23. While the number of poles and the permitted voltages vary depending on the size, the 360° shielded data core is always the same and designed for industrial ethernet Cat 5 with wire cross section AWG22.

Locking is secured with a bayonet fastener, so that a time-consuming screw connection by means of a torque wrench is no longer necessary. A quarter turn ensures a secure connection and IP67 protection class. It is important to note that the bayonet can only be locked, if the hybrid connectors are completely mated in. The risk of failure due to incompletely mated or unscrewed connectors is thus greatly reduced.

The hybrid connector B23 is available with two pole number specifications, starting with a 5-pos. (4+PE) variant with a current rating of 32 A/30°C and a rated voltage of 630 V AC, where a wire cross-section up to AWG12/4.0 mm² can be used. (available now) The variant with 6-pos. (3+PE+2) power contacts offers two more power contacts for AWG14/2.5 mm² wire cross-section in addition to the 4-pos. (3+PE) contacts with AWG12/4.0 mm² wire cross-section each. (available from late summer)

They have a current rating of 20 A/30°C and also a rated voltage of 630V AC and can be used in motors with electric brakes, for example.

Up to three different codings per mating face ensure that connectors that are unpluggable among each other can be used for different applications.

Benefits:
• Space-saving by transmitting data and power via one single
connector
• Reduced wiring
• Cost savings
• Fast and secure connection with bayonet locking
• Degree of protection IP67
• Improved diagnostic possibilities
• Compact and robust design

Fields of application:
• Drive technology
• Machine manufacturing
• Robotics
• Assembly and production lines
• Renewable energy
