A program with all the parameters required for the machining process, such as workpiece speed, machining time, oscillation, grinding pressure and tape speed can be stored and loaded for every workpiece that needs to be ma-chined. This makes it possible to index to all tape finisher positions extremely precisely via the controller or manually using the positioning system. The self-explanatory user operation surface with its pull-down menus is ahead of the field in innovation. All settings can be carried out quickly and easily by the operator him- or herself, without special training.
The automatic loading technology reduces the machine’s non-productive time and loading processes to an absolute minimum. With its quickly adjustable tape-finish units, the modular construction guarantees flexible, cost-neutral configuration for the most varied workpieces; in the standard working area, these can have dimensions of up to 200 mm diameter and 800 mm length.

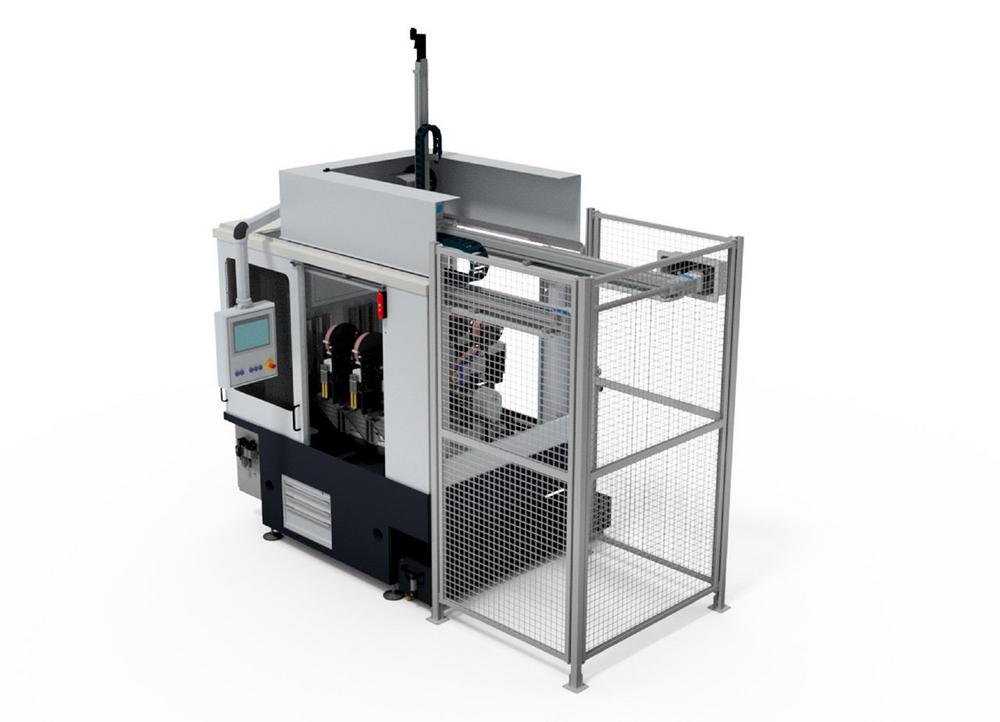

As an option, the new finishing machines can be equipped with a fully-integrated 3-axis handling system, freely programmable via the Siemens’ central control system. It is automatically set up and contained in the compo-nents program. The grippers, tailor-made for the workpiece, have been de-signed as double loading to achieve short changeover times and can be quickly exchanged to adapt to the respective type of workpiece. This ensures fast and faultless changeover times.
More information can be found at: Thielenhaus Superfinish Innovation AG, St. Gallerstr. 52, CH 9548 Matzingen, Switzerland, Tel. +41 (0) 523 76 26 20, Fax +41 (0) 523 76 26 19 or from Thielenhaus Technologies GmbH, PO Box 201855, 42218 Wuppertal, Germany, Tel. +49 (0) 202 481-0, Fax +49 (0) 202 45 04 45, or on the Internet at www.superfinish.ch or www.thielenhaus.com
Thielenhaus Microfinish, a division of the German Thielenhaus Technologies GmbH, has been building high-precision, high-productivity machine tools for over 100 years. In the last 70 years, Thielenhaus Microfinish has become the leading manufacturer of extreme-precision machine tools for Microfinish/Superfinish and double-disc grinding applications.
Microfinishing, also known as superfinishing or short-stroke honing, is the ideal machining process for achieving extreme precision surfaces and component geometries, and removing amorphous surface layers in the magnitude of 2 µm. Honing stones, cup wheels and microfinishing tape or film can be used to generate surface roughness or geometrical accuracy within a previously defined window that often spans a few tenths of a micron. Indicated below are a number of parameters which can be optimized using Microfinish:
With facilities in Europe, America and Asia and a worldwide service network, Thielenhaus has adapted itself to the market conditions and to the customer needs all over the world.
Commitment to quality: Thielenhaus machines are employed by leading manufacturers across the world for a good reason – their high reliability, productivity and production quality. Thielenhaus continuously pushes the limits of precision machining, enabling its customers to achieve workpiece qualities that were previously impossible.
All solutions from a single source: Extreme precision is the specialty of Thielenhaus, and over the years the manufacturer has built the world’s largest portfolio of Microfinish solutions, ranging from industrial equipment for large and small manufacturers to just-in-time tool delivery and other services. When it comes to Microfinish Thielenhaus is the one-stop shop.
The flexibility of Thielenhaus is its customer’s advantage: The manufacturer adapts the machine solutions to the customer’s component, loading/unloading preferences, cycle time requirements and other specific needs. The modular design of the machine platforms accommodates even tricky components.
New challenges and innovation are the passion of Thielenhaus: They are proud of their 430+ patents in surface finishing technology as well as of numerous market-leading platforms and pioneering innovations. Thielenhaus constantly seeks to improve the machining concepts, always keeping in mind the challenges of tomorrow.
Customer support all over the world: With customer service locations in six countries and service agreements with a network of agents and distributors, Thielenhaus is able to provide quick service on short notice practically anywhere in the world. The customers also benefit from a 24/7 hotline and Online Direct Service.
Thielenhaus is known as a highly experienced problem solver: Anyone can be a problem solver, but with more than 70 years of developing Microfinish solutions, the Thielenhaus staff have probably seen and solved more Microfinish problems than anyone else in the industry. When it comes to splitting microns, the Thielenhaus in-depth knowledge of the microfinishing process is unsurpassed.
