Powerful ozone systems Ozonfilt OZVb are ideally suited to treating cooling and process water. The compact systems efficiently generate ozone from compressed air in an output range of up to 70 g/h and provide everything you need for safe, smooth operation.
Ozone systems Ozonfilt OZVb are pressurised systems in which compressed air is fed into the ozone generator as the operating gas. The air is treated in the system using a pressure swing dryer and good operational reliability is continuously monitored. Ozone can therefore be generated stably even with a high level of ambient air humidity with ozone concentrations of up to 20 g/Nm3.
The “plug and play” complete system can be supplied with a perfectly matched mixing unit, including back pressure valve, vacuum breaker and static mixer. The Heidelberg-based manufacturer will be exhibiting the entire system on Stand J94 in Hall 8. Ozone concentrations of between 3 and 12 ppm can therefore be achieved in the water to be treated, depending on the temperature.
Safe and smooth operation is ensured by continuous monitoring of all relevant operating data and by automatic adjustment of the performance data to fluctuations in mains voltage and pressure.
Various interfaces allow the system to communicate with higher-level controls or for remote monitoring via LAN web server, PROFIBUS® DP, PROFINET, Modbus TCP RTU.

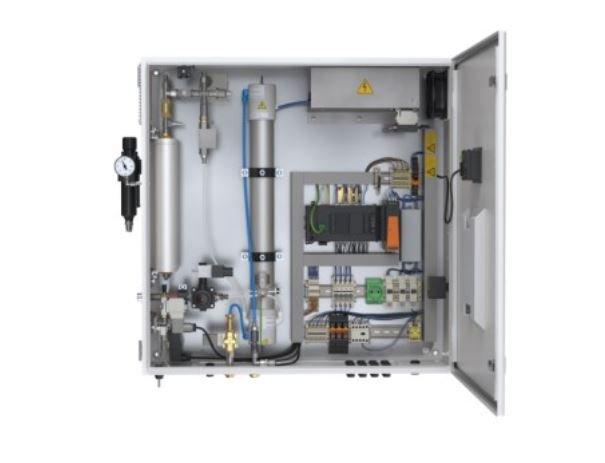

OZONFILT® OZVb is a compact system for operationally reliable ozone generation with ozone concentrations of up to 20 g/Nm3.
For more than 55 years, the ProMinent Group has been a manufacturer of components and systems in the field of fluid metering as well as a reliable solution partner for water treatment.
Based on innovative products, comprehensive expertise in process technology and distinct application orientation, practical solutions are developed for customer-specific requirements. Thereby, ProMinent supports its customers worldwide with regard to safety, efficiency and environmental compatibility.
The Group is headquartered in Heidelberg, Germany. About 2,500 employees in 51 own sales, production and service companies as well as further representations guarantee service and availability in around 100 countries.
In addition to the treatment of public drinking and waste water, the key
sectors include chemical industry, industrial water treatment, food and
beverage industry, treatment of swimming pool water, oil and gas industry and process industry.
The extensive product portfolio consists of components such as metering pumps, peristaltic pumps, measuring and control technology and sensors for water parameters; products for water treatment such as metering systems for polymers as well as complete metering systems and accessories such as chemical storage containers and transfer pumps. For the process and plant technology used in the oil, gas and energy sectors, the Group provides process metering pumps and plants from its own production.
Furthermore ProMinent offers a broad portfolio of environmentally friendly and economic water treatment and disinfection processes with highest efficiency.
The product range comprises chlorine dioxide plants, chlorine gas metering systems, electrolysis systems, UV systems, ozone systems as well as systems for membrane filtration.
In order to be a dependable long-term partner for its customers, the Group is investing constantly both in product innovation and in state-of-the-art manu-facturing processes with a high level of in-house production. 11 worldwide production facilities guarantee a consistently high standard of quality, flexibility and delivery reliability.
More detailed information is available at www.prominent.com
