Reduce reject – Increase performance

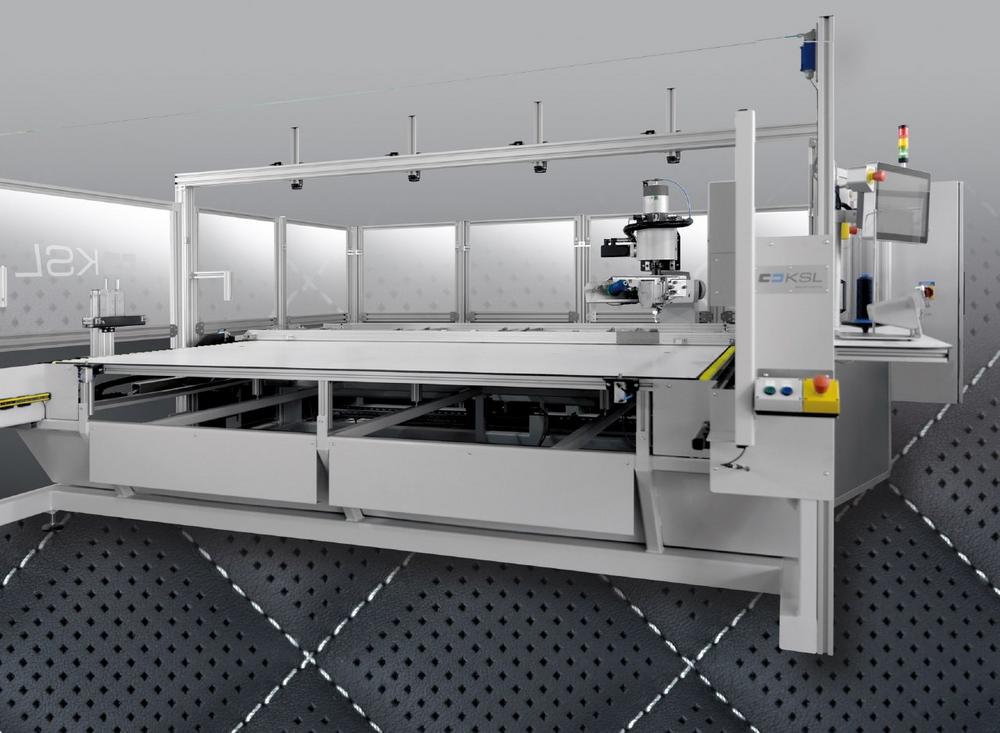

The intelligent VISION SYSTEM (equipped with up to 4 cameras) compensates tolerances that arise in the seam contour as a result of material shrinkage and tolerances when punching the perforation, among other things. Specifically, the VISION SYSTEM compares the image of a master part with the image of a part clamped in the sewing template. The complete seam design is then automatically corrected in the sewing program based on the individual measurement points. Thus VISION SYSTEM makes it possible to sew between the perforations with millimetre precision and to compensate the resulting tolerances. It is possible to compensate tolerances of up to 4 mm in the X and Y axis. The machine achieves a maximum speed of 2,800 s.p.m. Electromagnetic thread trimmer for upper and lower thread and upper thread monitor is standard equipment of the machine. The thread tension may be regulated via touch-panel. The maximum stitch length is 12 mm.
