spo-book RUGGED GTX 1050 Ti – High-End Graphics, passively cooled

Fanless Graphics power: GTX 1050 Ti inside!

The RUGGED GTX 1050 Ti is an absolute pioneer in the Mini-PC range of spo-comm. This is because our high-res industrial PC is the first system to be equipped with a dedicated graphics card in combination with a passive cooling system. The fanless cooling system ensured a quiet working environment as well as a longevity of the system.

Multimonitoring: How about an 8K-Videowall?

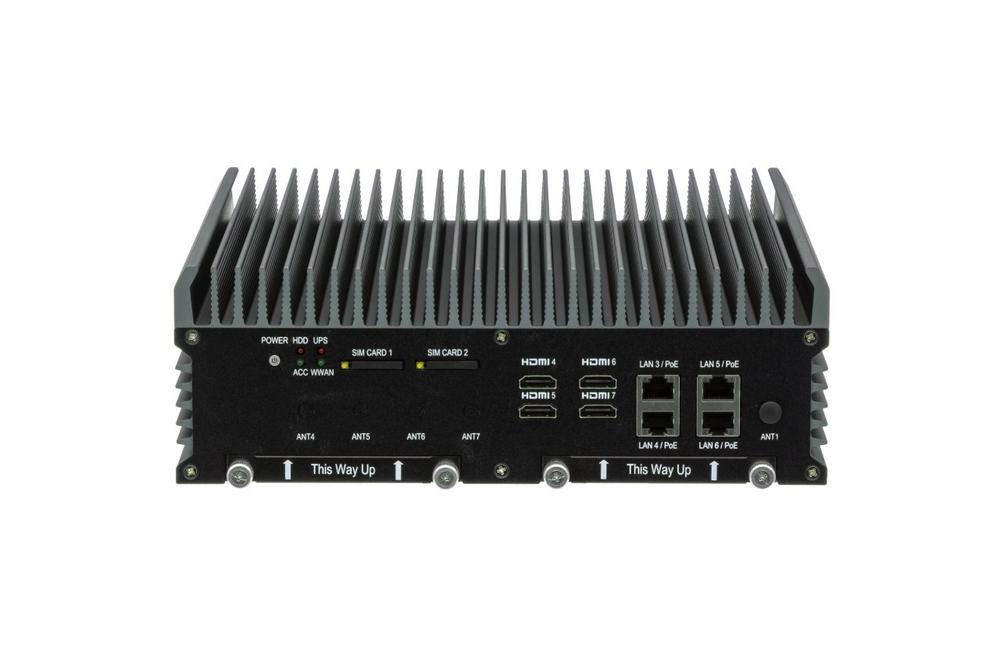

The RUGGED GTX 1050 Ti has a total of 7 HDMI ports. Four of them adorn the front of the RUGGED and the three remaining can be found on the back site. All outputs offer the possibility of 4K playback. If 4K is not enough, the four ports on the front of the RUGGED give you the option of controlling an 8K video wall. The high performing NVIDIA GTX 1050 Ti with its 4 GB memory ensures smoother playback of the content. Since the system is also categorized as an Outdoor-PC, the spo-book RUGGED GTX 1050 Ti offers a special appeal for outdoor Digital Signage applications. But of course, the Mini-PC is also suitable for all other conceivable applications, such as for control stations, process visualization or exhibition installations.

“RUGGED” as usual: Ideal Mini-PC for outdoor applications

Like all systems of the RUGGED series, the RUGGED GTX 1050 Ti can easily cope with outside temperatures that are in the so-called extended temperature range. This covers a span of -40° Celsius to 70° Celsius. As already mentioned in detail, both the passive cooling system and the solid and robust metal housing of the Industrial-PC ensure that the inside remains unaffected by air humidity and dust particles.

RUGGED goes Vehicle-Computing

The spo-book RUGGED GTX 1050 Ti is able, like our RUGGED Q170, to absorb so-called voltage spikes, which occur, for instance, when starting the motor of a vehicle. In addition, unlike its predecessors, the RUGGED GTX 1050 Ti is capable of taming not just the usual 9-36 Volts. The wide range input of the talented Mini-PC can even intercept up to 48 volts. As usual, our new Vehicle-PC is like all our other systems tested for vibration and shocks according to the American military standards. Installations in vehicles are therefore ready to go!

Multi-SIM: Wide-ranging application

Those who don’t want to rely on one single network provider can easily implement a Multi-SIM card in the spo-book RUGGED GTX 1050 Ti. Due to the broad network spectrum that you get through this, it is ensured that the industrial PC stays connected all the time.

Highlights and technical facts at one glance:

• CPU: Intel® Core i5-6500TE (4 x 2,3 GHz, up to 3,3 GHz)
• Chipset: Intel® Skylake
• Graphics: NVIDIA GTX 1050 Ti 4GB and Intel® HD Graphics 530
• Dimensions (W x H x D): 260 x 89 x 226,5 mm
• RAM: up to 32 GB SO-DDR IV RAM
• SATA: 2.5‘‘ SATA II HDD or SSD
• RAID 0
• Highest resolution (with 4xHDMI on the front): 4096×2304@60Hz
• Multi-Monitoring
• Robust metal housing with passive cooling system
• 9 – 48 V DC wide-range input
• Ambient conditions -40°C to +70°C with 10 ~ 95% of non-condensing moisture
• VESA wall mounting

Anschlüsse:
4 x USB 3.0
4 x COM RS-232/422/485 (one of them DIO)
4 x Intel Gigabit LAN (optional PoE)
2 x SATA slot
1 x Line-out and 1 x Mic-in (Line-in optional)
2 x SIM Slot
4 x HDMI on the front
3 x HDMI on the back
1 x Phoenix-Connector

optional:
– WiFi
– Bluetooth
– Internal battery for up to 10 minutes emergency operation
