Quintex presents numerous new products at the ACHEMA 2018

Just as helpful, quick and easy as the products are the online tools shown on the homepage of Quintex GmbH. At the booth one could convince itself of practicality, speed and easy handling. Nobody needs to wait long for answers, but can generate them on his own in the sense of an accelerated process flow. Whether Ex e terminal boxes, cable/line bushings, design of trace heating or design of local control stations: everything goes fast over maximally 2 pages, is partially supported by visual drag and drop methods, and determines always immediately the current list price.

The attached pictures show the solutions of the product branches. Most of the associated data can already be found on the homepage or can be requested directly from the responsible sales or product management staff.

Here are some facts about the novelties shown:

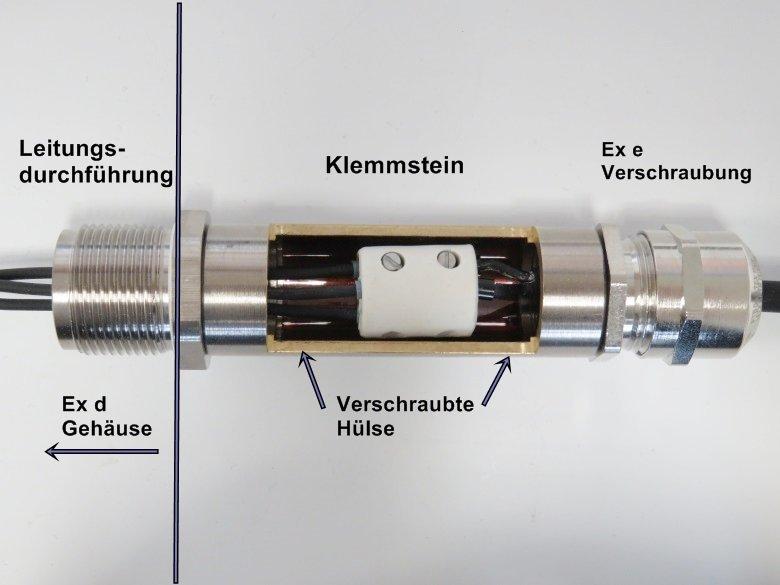

LBCON: Connection by means of an LD with screwed-on Ex e round enclosure and terminal block. This avoids the opening of the Ex d encosure and opens up the possibility of easy contacting.

WLAN access point: The dome housing or long housing with special glass contains standardized or customer-specific industrial access points. This ensures data transmission in areas with Zone 1/21 categories (also in the sense of IoT)

TWIN system: Temperature sensor in a cable with automatic sensor assignment. Up to 200 active temperature sensors can be installed and monitored in a cable up to 1500m in length. No complex programming with address assignment, but intelligent connection enables easy integration in monitoring and process control systems

IRBM .. Ex d: Controller-limiter Combination with capillary thermostats in a flameproof enclosure. The limiter has its own approval, as it acts in Ex zone. The capillary is leaded through a pluggable cable bushing in order to determine the position on-site.

Programmable LED matrix in a flame proof enclosure. Easy programming of an LED matrix 32 x 192; 16.7 million colors to represent information almost figuratively and thus can be read at a glance. The programming can also be done in advance by Quintex.

Compact heater: Small resistance heater for Ex zones in different power output and operation voltages. Four standardized ranges are available: 6W and 12W for 24V or 230V. Avoiding condensation in enclosures or protecting electronics at low temperatures are widely used in applications that are now also available in hazardous areas.

There was a lot more. Just look at the live stream from our permanent exhibition in our premises. If you have requests or questions we can also clarify this via live conference. As if you are currently at our booth. The registration and arrangement form can be found on our homepage.
