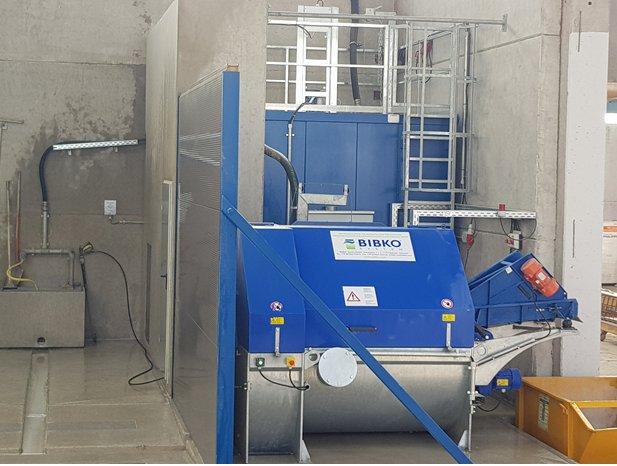

The ComTec4 is the latest development from Bibko® and has been designed for precast concrete plants primarily. The compact design of the system saves space and provides plants with small quantities of residual concrete with the possibility of efficient recycling. The standard version of the systems comes with an external bucket conveyor for dosing residual concrete occurring at floor level an wash water into the washing chamber in a controlled manner, thus excluding any overfilling of the system.
The bucket conveyor can be fitted with a galvanized charging hopper of variable sizes or alternatively made of concrete by the customer.
In contrast to the more powerful ComTec wash-out systems of 10 to 40m³, the material discharge of the ComTec4 is equipped with an oscillating conveyor channel (including dewatering screen). This vibrating screen is provided with a special, highly wear-resistant screen lining wich discharges the material washed out, while draining simultaneously.
For this purpose, a steel agitator tank for above-ground installation was delivered together with an integrated, energy-efficient and powerful agitator as well as highly wear-resistant submersible pumps made by Bibko®.
