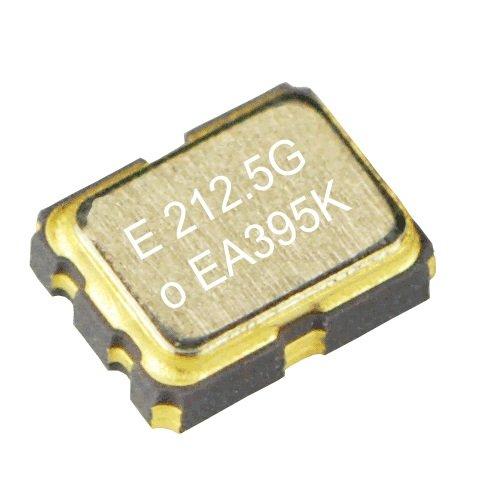

Epson’s Industry-Standard, Fixed-Frequency, Differential Output Simple Packaged Crystal Oscillators (SPXO)

Epson uses traditional AT-cut crystals and PLLs to provide mainstream solutions that balance performance and cost. To deliver an extremely low jitter, Epson also uses High Frequency Fundamental (HFF) crystals. All Epson’s timing products use only fundamental-mode crystals for superior reliability.

Epson’s differential output SPXOs are available in sizes from 3.2 mm x 2.5 mm to 7.0 mm x 5.0 mm, cover temperature ranges from -40 °C to +105 °C, and use an industry-standard pin out with LV-PECL, LVDS, and HCSL output options.

Features

• Low Jitter
• Three package Sizes: 7.0 x 5.0 mm², 5.0 x 3.2 mm², 3.2 x 2.5 mm²
• Extended Temperature: -40 °C to +105 °C
• Tight Stability: ±20 ppm, ±25 ppm, ±30 ppm, ±50 ppm, ±100ppm
• Low Power: as low as 25 mA maximum
• Differential Output: LVPECL, LVDS, and HCSL
• Supply Voltage: 2.5 V and 3.3 V (2.375 V – 3.6 V)
