Refractory materials with Poraver®

Applications

Poraver^® is an excellent lightweight aggregate and filler for a wide variety of refractory products and can be used similar to vermiculite or expanded shale respectively clay (ESCS – Expanded Shale, Clay and Slate).

Unshaped (monolithic) products

• Heat resistant lightweight concrete
• Insulating mortar
• Backfills
• Gunning mixes
• Ramming mixes
• Insulating fills

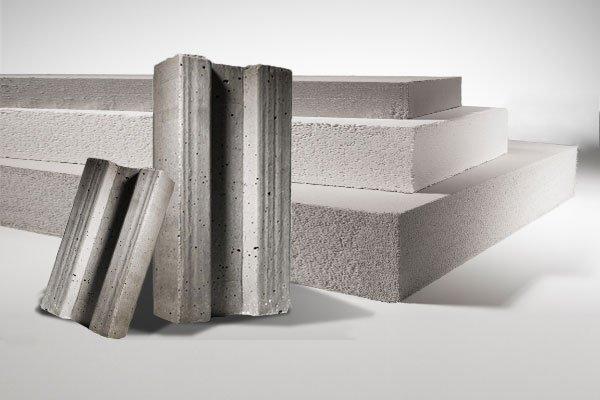

Shaped products

• Moulded parts from refractory lightweight concrete
• Insulating concrete parts
• Insulating panels

Poraver^® Advantages

• 7 different grain sizes from 0.04 mm to 4 mm allow the composition of a sieve line with a dense structure
• The density can be specifically adjusted by selecting different grain sizes and very good thermal insulation properties can be achieved
• The spherical shape, low weight and high compressive strength of the Poraver^® grain make it easy and safe to process the mixes
• Compared to many other lightweight fillers, Poraver^® offers low water absorption, which reduces the water requirement of the mixture and therefore achieves high strength
• Poraver^® offers a constant material quality and chemical composition – ensuring consistent quality of the finished products

Trials

In the following trials Poraver^® was tested in hydraulically hardening, unshaped (monolithic) and insulating refractory lightweight concretes. The material properties were tested on a pourable mixture for a firing at 1,000 °C.

Conclusion

The measurements on the tested system clearly show that the technological properties of the product are within the desired range even after the firing at 1,000° C. The flexural strength of the mortar, after firing, corresponds almost to the value of the initial test and the compressive strength is approximately 1/3 lower than before the test. The remaining longitudinal shrinkage of the system of -0.8 % is within the acceptable range.
