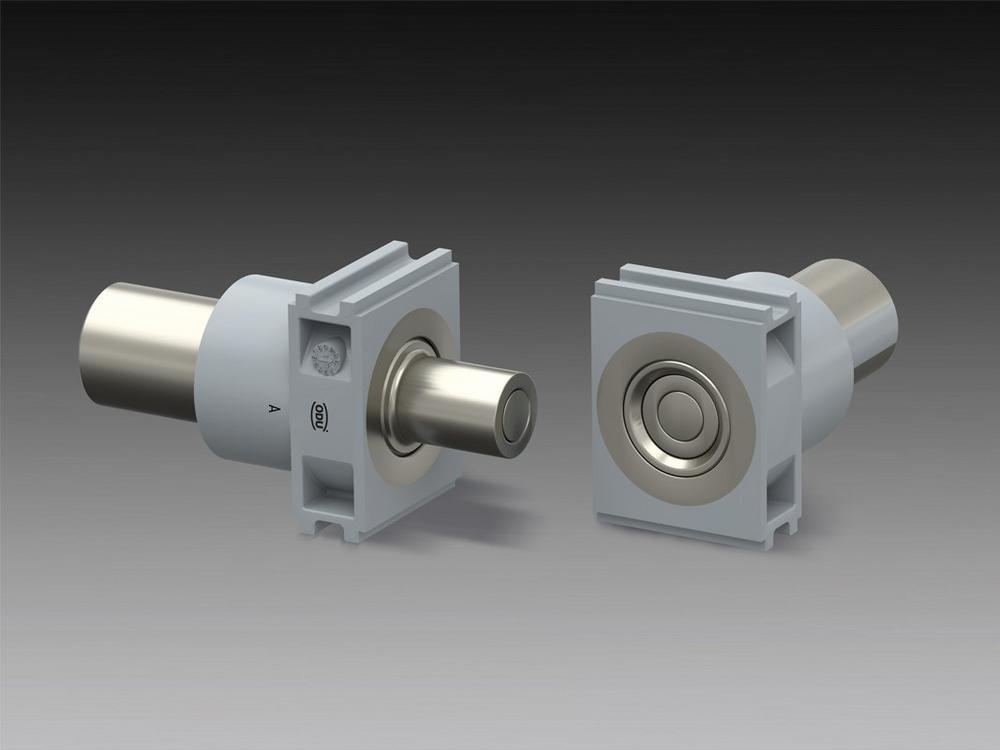

ODU, a global front-runner in the development and production of high-performance connector solutions and cable assemblies, is introducing a new fluid feedthrough for the expanded rectangular ODU-MAC® Silver-Line und ODU-MAC® White-Line connector series. The ODU-MAC® Silver-Line is an efficient automatic docking connector with outstanding failure protection. The ODU-MAC® White-Line is a versatile manual connector, ideal for applications requiring a compact interface. The new double shut-off feedthrough is an innovative system solution addition that meets specific market requirements in the medical, industrial automation as well as test and measurement technology areas. The module is designed for an operating pressure of 25 bar at low pressure drop. It also enables a G1/4 connection option for tubing with an outside diameter of 6–12 mm and is suitable for the feedthrough of air, water and other fluids such as cooling liquids. In addition to the extremely versatile, time-tested modules for signals, power, high current, coax, air pressure, data rates and fiber optics, this fluid feedthrough also boasts a service life of over 100,000 mating cycles.

The features at a glance:

  • Interface for G1/4 push-in fitting, straight or angular
  • Suitable for tubing with an outside diameter of 6–12 mm
  • Space saving with just 9 units
  • Removable plug sleeve and coupling
  • Maximum operating pressure from -0.95 to 25 bar
  • Compatible with selected spindle locking housings

The modular versatility of the ODU-MAC® product lines enables the customized combination of a wide range of transmission types with a hybrid interface. Any transmission type – whether signals, power, high current, high voltage, coax or media such as air, fluids, data rates or fiber optics – can be chosen and integrated into tailored connector solutions for automatic docking or manual mating. This is what makes the ODU-MAC® able to adjust flexibly to whatever technical requirements present themselves. The right variety can be selected from the three product fields. More information can be found at: https://www.odu-connectors.com/products-solutions/modular-connectors/

Über die ODU GmbH & Co. KG

The ODU Group is one of the world’s leading suppliers of connector systems, employing 2,100 people around the world. In addition to its company headquarters in Mühldorf am Inn (Germany), ODU also has an international production and distribution network throughout Europe, North America and Asia. ODU combines all relevant areas of expertise and key technologies including design and development, machine tooling and special machine construction, injection, stamping, turning, surface technology, assembly and cable assembly. The ODU Group sells its products globally through its eight subsidiaries in Denmark, England, France, Italy, Sweden, the US, China and Japan, as well as through numerous international sales partners. ODU connectors ensure a reliable transmission of power, signals, data and media for a variety of demanding applications including medical technology, military and security, eMobility, energy, industrial electronics, and measurement and testing.
