Guaranteed Damage Thresholds at Design Wavelengths

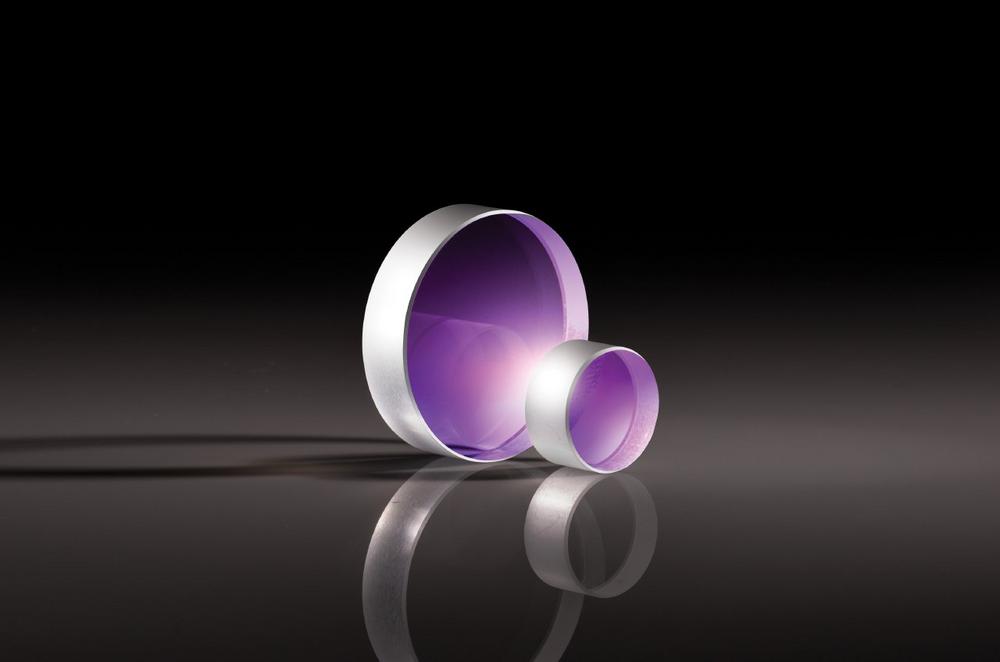

TECHSPEC® λ/10 Laser Line Coated Windows are designed for direct integration into a wide variety of laser applications. The RoHS compliant windows provide laser grade specifications including λ/10 surface flatness, 10-5 surface quality, and <3 arcmin parallelism. Guaranteeing a high laser damage threshold at their design wavelength, the robust windows feature anti-reflective (AR) coatings at common wavelengths of 266 nm, 355 nm, 532 nm, and 1064 nm. These Laser V-Coats provide an absolute reflection of <0,25 % at the design wavelength, which minimizes surface reflection and scatter for maximum system transmission.
Diameters from 12,7 mm to 50,8 mm available
TECHSPEC® λ/10 Laser Line Coated Windows are available with diameters from 12,7 mm to 50,8 mm, along with a variety of thickness options. The fused silica substrate options provide optimum thermal stability, while N-BK7 substrate options offer a lower cost alternative for less thermally sensitive applications. TECHSPEC® λ/10 Laser Line Coated Windows are in-stock and ready for immediate delivery.
