LAUDA heat transfer systems are typically used in applications in the pharmaceutical or fine chemical industries. Depending on the required outflow temperature, heat transfer systems use either thermal oil, water or water/glycol as the heat carrier. The systems are heated by electric energy, water vapor or other fuels, depending on the project, and generate a precisely controlled heat flow and a temperature profile in the consumer. For example, a heat transfer system was recently produced for a renowned European research institute according to very specific requirements.
Energy balancing during ongoing operation

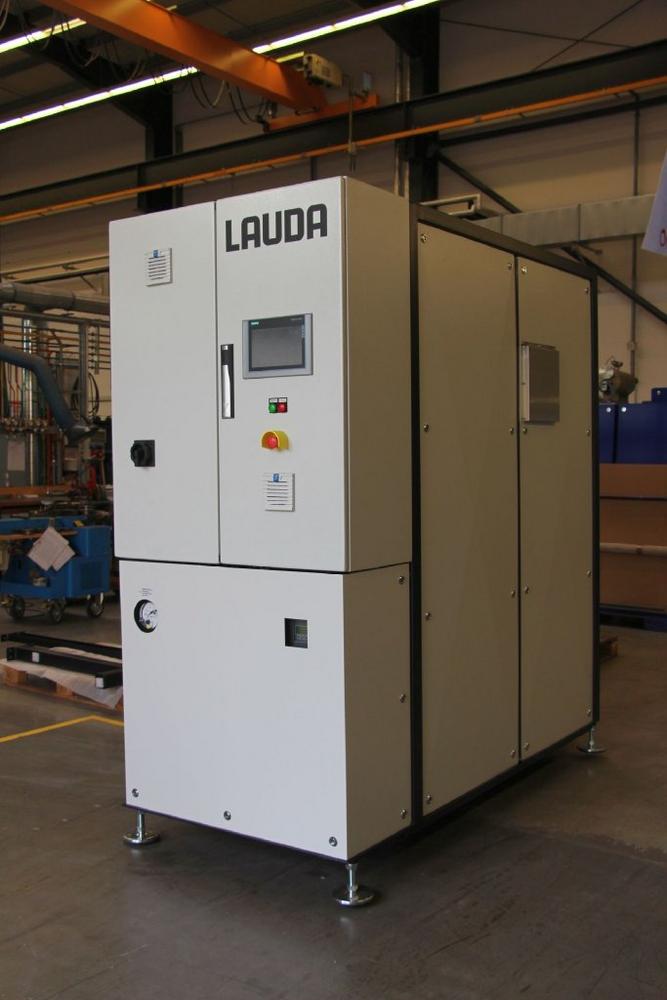

The customer, who works in the field of research and development, required a special reactor to be heated and cooled, to achieve a highly accurate mass and energy balance via the heat carrier. To achieve this, the system, which has a device from the ITH 400 series at its core, needed to actively separate aqueous components from the heat carrier oil. The challenge: Aqueous components needed to be evaporated and subsequently condensed and discharged from the oil circuit in a controlled manner, all during ongoing operation. This would enable the customer to achieve an exact balance of the heat flow in the reactor to guarantee a defined mass flow.
The data was recorded using a flow meter from Endress+Hauser, a component that LAUDA has had many years of good experiences with and installs in its system several times a year. To control the system, LAUDA opted for modern Siemens PLC controls with a touch panel for easy operation on site. Alternatively, the system can also be controlled via the central process control system. This gives the customer direct access to the volume flow or pressure controls, allowing process optimization at any time.
The entire system was specially designed for the customer application by the LAUDA engineering team, and produced in a project duration of only 18 weeks. The customer, based in Italy, was heavily involved in the project, from conception to final delivery. This proximity to the customer, as well as the construction of industrial heating and cooling systems according to the customer’s requirement profile, is one of LAUDA’s strengths, explains Ralph Herbert, project manager at LAUDA Heating and Cooling Systems. “In every project, we design our systems according to the precise requirements of the customer. In doing so, we apply planning steps that have been tried and tested over many years, so that we can support the customer from the initial idea to the final commissioning and beyond,” concludes Ralph Herbert. Find out more about LAUDA heating and cooling systems on our website.
