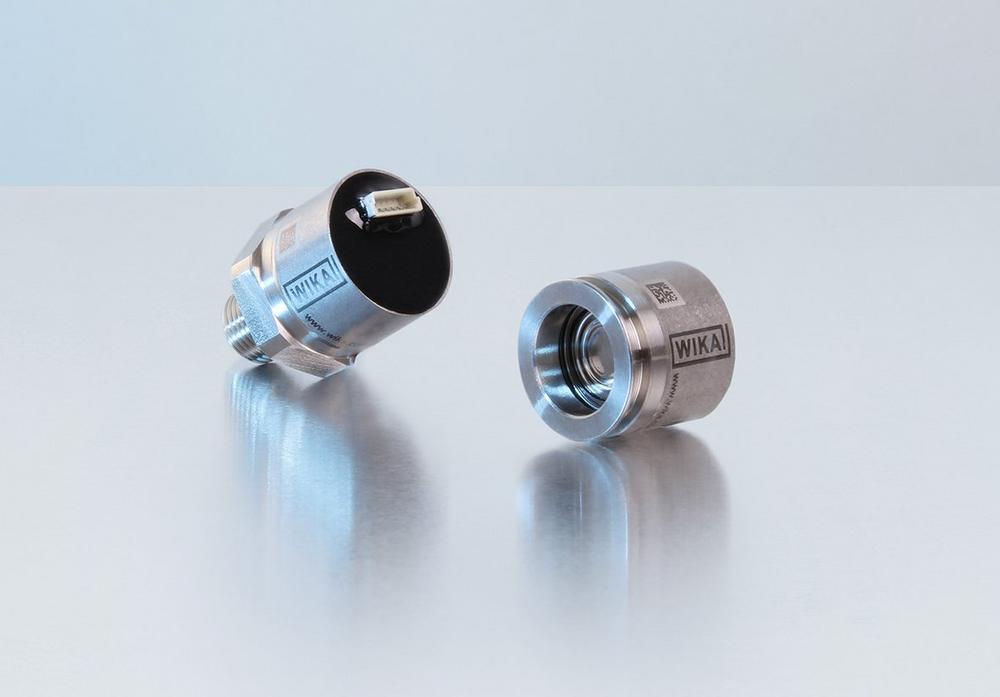

With a diameter of 19 mm and a height starting from 17 mm (depending on the process connection), the sensor module can be integrated into a wide variety of products and systems. The custom-fit specification is supported by the selection of analogue and digital output signals. The version with digital I²C signal features very low power consumption and a fast response time (3 ms). It is therefore ideal for applications with battery operation. In addition, a temperature value can be output via the I²C signal.
The model MPR-1 is available, as standard, with gauge and absolute pressure measuring ranges (from 0 … 0.4 bar to 0 … 25 bar) as well as vacuum measuring ranges. It measures with an accuracy of ≤ ±0.5 % of the span. On request, a higher accuracy and other pressure ranges can be realised.
As a family-run business acting globally, with over 9,300 highly qualified employees, the WIKA group of companies is a worldwide leader in pressure and temperature measurement. The company also sets the standard in the measurement of level and flow, and in calibration technology. Founded in 1946, WIKA is today a strong and reliable partner for all the requirements of industrial measurement technology, thanks to a broad portfolio of high-precision instruments and comprehensive services.
With manufacturing locations around the globe, WIKA ensures flexibility and the highest delivery performance. Every year, over 50 million quality products, both standard and customer-specific solutions, are delivered in batches of 1 to over 10,000 units. With numerous wholly-owned subsidiaries and partners, WIKA competently and reliably supports its customers worldwide. Our experienced engineers and sales experts are your competent and dependable contacts locally.
