TTD-Tritan – Machining of heat exchangers taken to the next level

Triple edge drill is the method of choice

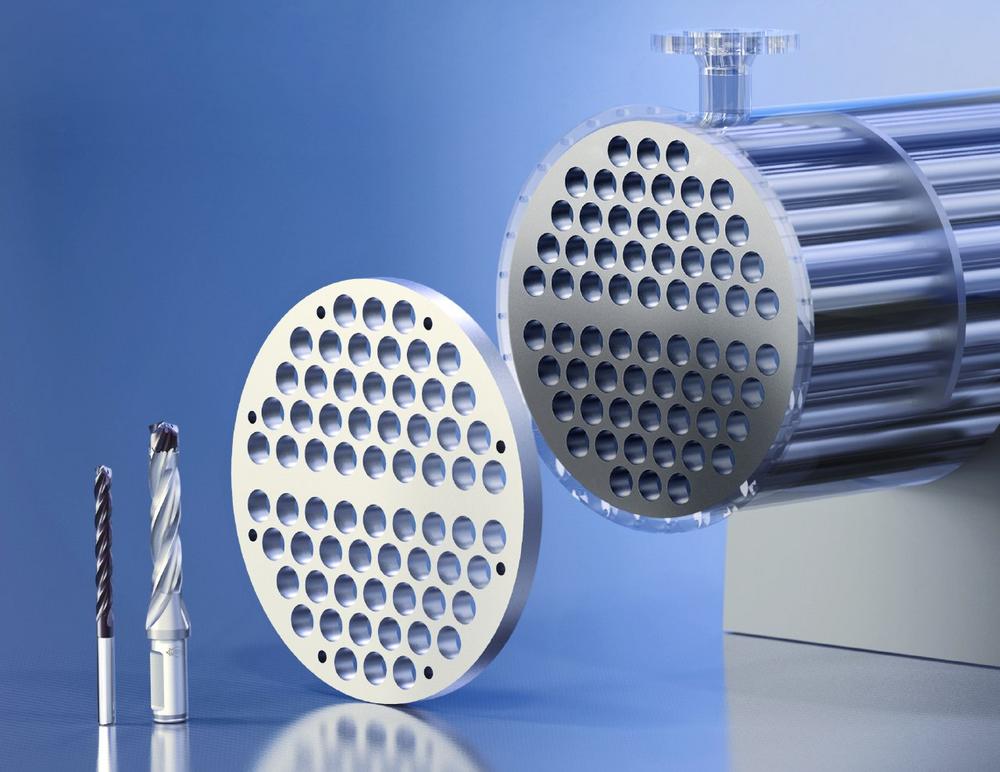

The triple edge replaceable head drill TTD-Tritan from MAPAL has been tested in the petrochemical industry and is convincing right down the line when machining a tube plate. On the TTD-Tritan, tool head and tool holder are joined by Hirth serration. This connection is easy to operate and particularly stable, so that all the drill reaches the performance level of the solid carbide equivalent. In addition it guarantees the best torque transmission with simultaneous high changing and radial run-out accuracy. The TTD-Tritan is optimally centred via its pronounced drill tip and ensures very good circularity. In addition, the cost-intensive carbide is limited to the tool head for the replaceable head system, which leads to low tool costs even with large diameters. The replaceable head system has a positive effect on stock, as the wear parts are mainly limited to the drill heads: As a result, the capital tied up in stock is also reduced.

In a specific case, the customer needs each diameter version in several lengths to machine the different versions of tube plates. The complete MAPAL range makes it possible to provide all desired versions. In addition, smaller diameters are served with the solid carbide design.

Machining time reduced by 57 percent

The customer’s tube plates made of carbon steel are drilled into the solid using the TTD-Tritan. The bore diameter is 25.6 mm and the bore length is 63.5 mm. Here the TTD-Tritan operates with a feed rate 59 percent higher than the double edge replaceable head drill from a competitor used to date. For the solid drilling operation described, the TTD-Tritan achieves a tool life of a good 53 metres while the drill previously used only achieved almost 28 metres. In addition to this significant increase of 90 percent, the MAPAL tool performs the solid drilling operation in one machining step and only takes 29 minutes for the complete tube plate with 550 bores. In contrast, piloting was necessary in the previous machining process. The tube plate also had to be manually cleaned to remove the partly very long chips after piloting. Overall, the TTD-Tritan reduces the machining time by 57 percent.

QTD indexable insert drill with new pyramid tip for stack machining

In addition to the two front tube plates, slightly thinner intermediate plates with the same bore pattern are also installed in shell & tube heat exchangers. These intermediate plates are stacked above one another for machining, spot welded together, drilled and then separated again. With the QTD indexable insert drill with innovative, patented pyramid tip, MAPAL has the optimum solution for even this application in its portfolio. The newly developed indexable insert with pyramid tip has a very small chisel edge and a tip angle of 120°. Furthermore, the indexable insert is self-centering and ensures a controlled bore entrance. The intermediate plates can thus be reliably drilled in a single machining step.
