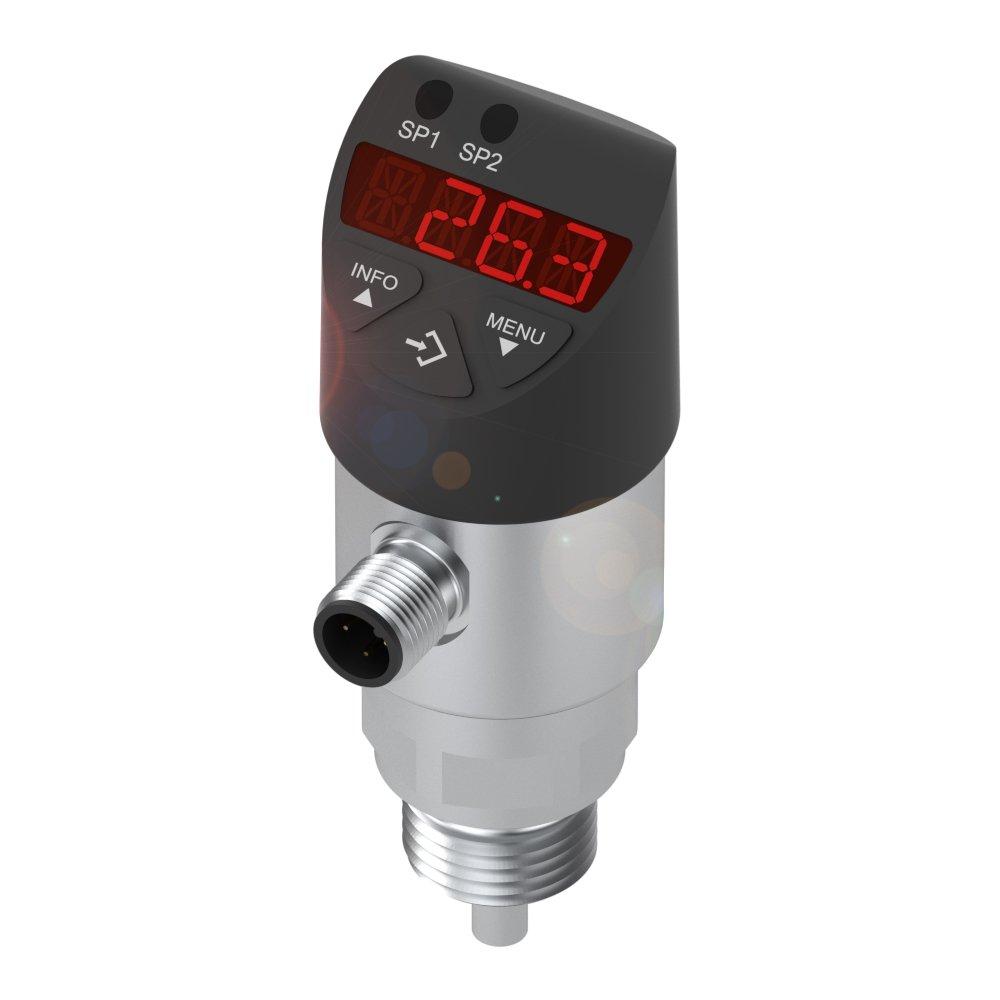

Rugged sensors for small-scale process technology

Depending on the version, the BFT sensors provide PNP switching outputs, analog signals 0…10V /4…20mA or work as a PT1000 sensor. They are simple to install by threading into the process using a standard process connection with G- and NPT threads. Integrating them requires just a 4-pin M12 plug on the sensor.

Continuous monitoring of process media on machines and equipment contributes greatly to process security. Values that need to be maintained are pressure, level and temperature. When for example in a hydraulic system you need to monitor the temperature of the hydraulic fluid, you can do this reliably using our BFT media-contacting temperature sensors. Monitoring the temperature within the hydraulic loop guarantees correct fluid viscosity and thereby the best performance of a machine. Critical process conditions such as a temperature limit can be controlled directly via the switching output. An analog output provides continuous measurement results. The BFT temperature sensors also stand out when it comes to monitoring the cooling water, lubricants and compressed air, making them ideal for a variety of applications.
