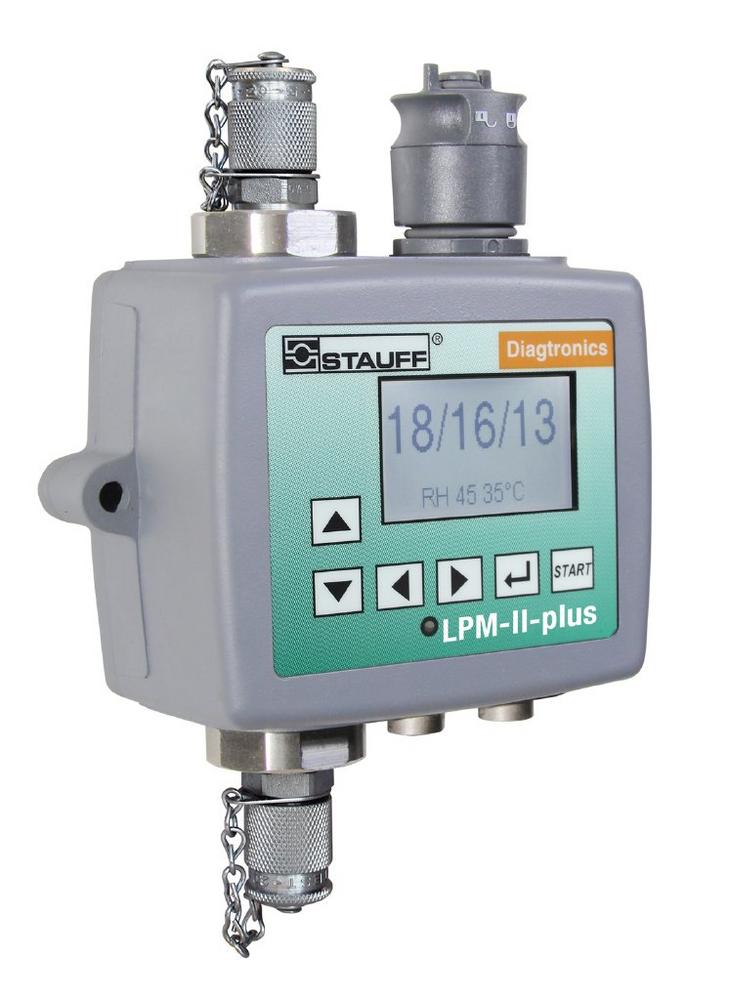

The Stauff LPM-II-plus particle monitor is used in industrial systems with maximum operating pressures of 420 bar in which continuous measurement or analysis of the hydraulic fluids is required.
The redesigned particle monitor, which has been adapted to customer requirements, is an automatic optical particle counter with high-performance LEDs, which automatically detect the degree of contamination of hydraulic fluids in the form of an 8-channel measurement. This enables precise determination of the particle sizes in compliance with international standards, including ISO 4406, NAS 1638, AS 4059E and ISO 11218.
The status of oil purity is unequivocally displayed by a colour-coded LCD display and using coloured LEDs. Corresponding particle limit values can be individually adapted and set using the software supplied.
The LPM-II-plus can be used both as a stand-alone measuring unit with an internal memory for max. 4000 measurements as well as being controlled via two switch outputs on PC and PLC system control or parallel by a remote display unit.
The optional USB interface enables the measured data to be transferred directly to a data carrier.
The LPM-II-plus now offers a 4-20 mA time-multiplex interface in addition to the Modbus and CAN bus interface to provide analogue measuring signals for analysis as well.
Depending on the model, the LPM-II-plus is immediately available with a water-in-oil sensor and temperature sensor, as well as with a connecting cable and the relevant software.
For more than 50 years, the companies of STAUFF Group have been developing, manufacturing and distributing pipework equipment and hydraulic components for mechanical and plant engineering and for service and industrial maintenance.
The overall range currently includes about 40000 standard components in ten product groups as well as a large number of special and system solutions, which are manufactured to customer specifications or based on in-house developments.
Wholly owned manufacturing, sales and service facilities in 18 countries and a tight global network of authorised distribution partners ensure high presence and service paired with a maximum of availability.
With more than 1400 employees worldwide, including more than 580 in Germany, the companies of STAUFF Group achieved external sales of over EUR 251 million in the business year 2018.
