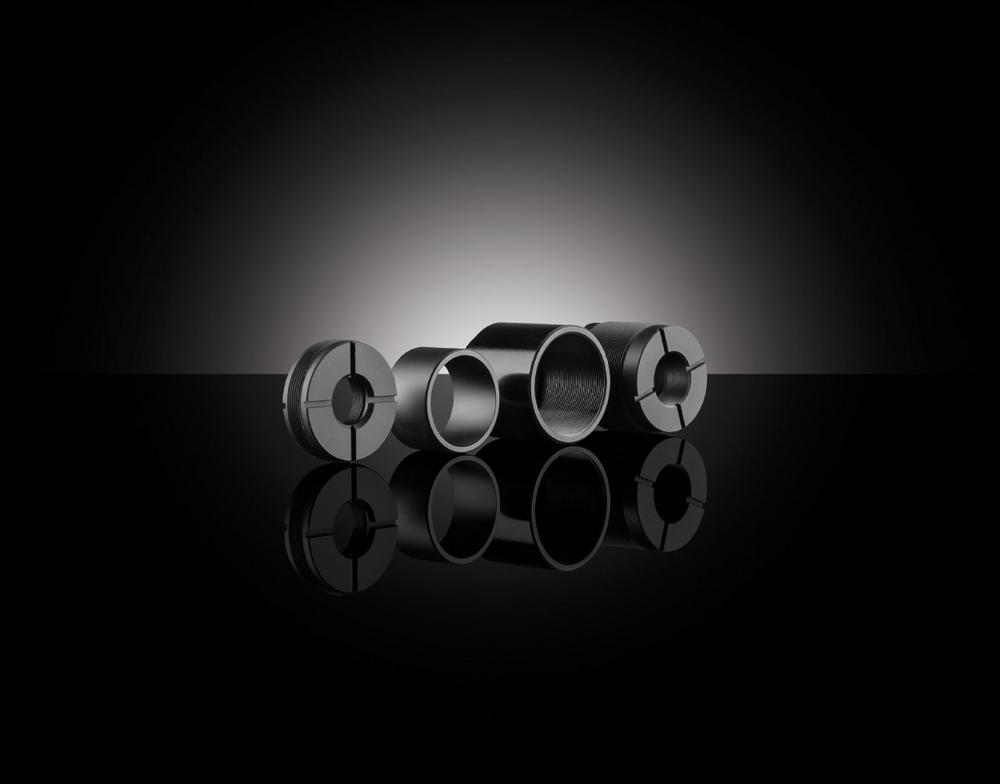

The TECHSPEC® Multi-Element Tube System works by combining Multi-Element Outer Tubes with Multi-Element Inner Single and Pair Optic Mounts to create a complete system. The Outer Tubes have M29 threads running down their entire length; Inner Single and Pair Optic Mounts have M29 threads along their outer diameters, allowing them to be placed anywhere within an Outer Tube. This design allows optical spacing to be infinitely adjustable along the optical axis. To ease adjustment, Edmund Optics also introduced a custom-designed Multi-Element Tube Spanner Wrench, which has a hollow bore to allow a beam to pass through during adjustment.
The TECHSPEC® Multi-Element Tube System can be further customized by using Multi-Element Spacer Rings and Spacer Tubes to securely define optical spacing, Multi-Element Inner Apertures to control internal beam diameter, and additional Multi-Element Tube System Accessories to connect systems together or expand systems’ capabilities.
The TECHSPEC® Multi-Element Tube System accommodates circular optics with diameters from 5 mm to 25,4 mm, and edge thicknesses up to 17 mm. System lengths can range from 15 mm to 100 mm, and can be combined to expand capabilities. Multi-Element Tube System components are in stock and available for immediate delivery.
Edmund Optics® (EO) is a leading producer of optics, imaging, and photonics technology. Supporting the R&D, electronics, semiconductor, pharmaceutical and biomedical markets around the globe; EO products are used in a variety of applications ranging from DNA sequencing or retinal eye scanning to high-speed factory automation. Its huge inventory of stock and custom optics allows EO to take customer projects from design to prototype and volume production. EO’s manufacturing capabilities combined with its global distribution network and its extensive product catalogue has earned it the position of the world’s largest supplier of off-the-shelf optical components.
