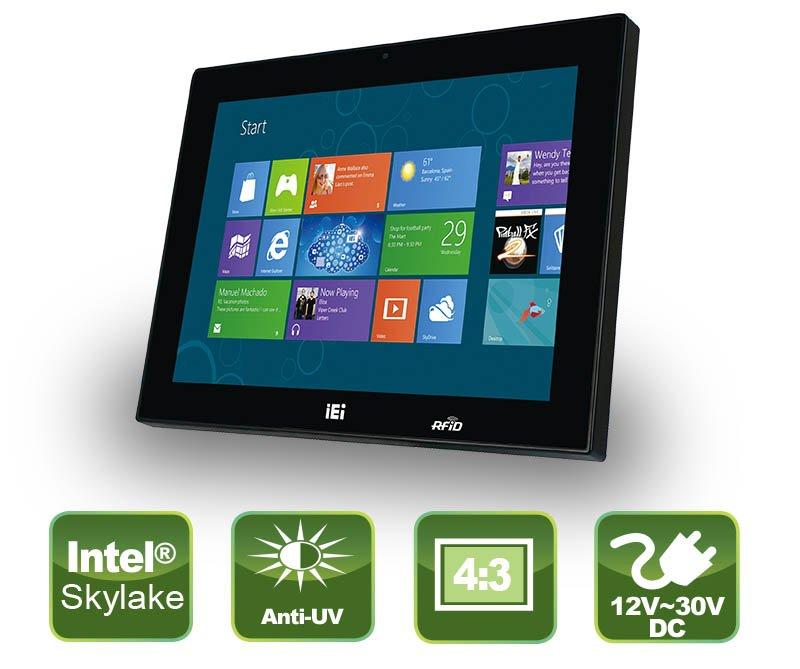

AFL3-12C – Semi-industrial Panel PC in 4:3 format

The 30x24cm compact AFL3-12C in 4:3 format is designed for a temperature range of -20°C ~ +50°C and a voltage input of 12~30V_DC. Due to its low installation depth of 6cm and versatile mounting options, the robust Panel PC can be used flexibly. In contrast to the previous Bay Trail variant, the AFL3-12C features a high-performance Intel^® Skylake Core^TM i5-6330U or Celeron^® 3855U on-board SoC and up to 16GB DDR4 SO-DIMM memory.

Another special feature is the integrated anti-UV protection of the capacitive touch screen. Realized by means of optical bonding as foil bonding, it protects the Panel PC from direct sunlight and ultraviolet light.

The AFL3-12C offers an expansion slot and a drive bay for mass storage in a mSATA and a 2.5" SSD format. In addition, one RS-232/422/485, one RS-232, two GbE LAN, two USB 2.0/3.0 each and one HDMI interface are available. The M.2 slot is equipped with a PCIe based WLAN and Bluetooth 4.0 module as standard. In addition, an RFID and card reader can be optionally connected or modular I/O modules, also called E-Window, can be led out to the side.

Upon customer request, ICP assembles the AFL3-12C with industrial SSD and RAM and installs the operating system including BIOS customization to the finished ready-to-use system.

Specifications

• 12" Panel PC with Intel^® Skylake Core^TM i5 or Celeron^® on-board SoC
• Max. 8GB DDR4 SO-DIMM memory
• Capacitive touch with anti-UV protection
• Two COM, four USB, one HDMI, two GbE LAN
• Expansions: 2.5" SSD hard drive and mSATA slot
• Voltage input: 12V~30VDC
• M.2 module for WLAN and Bluetooth 4.0
• Optional RFID and card reader and E-Window
• Operating temperature: -20°C~+50°C

Applications

• POI/POS and HMI applications
• Control unit for plants, machines and buildings
