Proficient implementation of new standards in light measurement technology

Testing quality standards for automotive displays in production

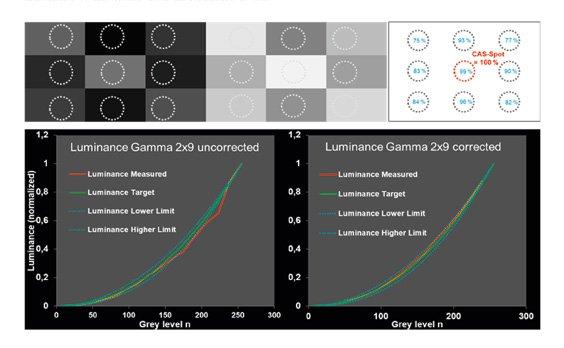

Automobile manufacturers have agreed on new quality standards for the analysis of automotive interior displays. The latter are to be implemented by suppliers and also checked in production. For meeting these special requirements Instrument Systems offers the spectrally optimized LumiTop 4000 imaging colorimeter with an extended software package: LumiSuite. Thanks to its unique design, the camera can deliver high-precision 2D measurements at production speed. Together with the accompanying LumiSuite software, it is the ideal measurement solution for fast end-of-line inspection of the latest OEM display quality standards, e.g. for color, homogeneity, gamma value and pixel defects.

Easy blue-light hazard evaluation

The original standard IEC 62471 for photobiological safety is open to broad interpretation, and overall it is difficult to implement in practice. More practically oriented methods for evaluating the blue light hazard of light sources are to be introduced with the new standard IEC 62778. On the basis of current discussions, Instrument Systems has modified its TOP 150 telescopic optical probe with the aim of satisfying the new measurement requirements – without compromising on user convenience. In conjunction with a spectroradiometer, the adapted TOP 150 reliably determines the blue-light hazard with an explicitly defined weighting function in the SpecWin Pro analysis software. Compared to previous measurement solutions, the TOP 150 is a fast, low-budget alternative with a commensurately high accuracy of results.

Testing narrow band laser diodes / VCSEL

The design of the recently introduced HR version of the CAS 120 series is specially geared to the measurement of narrow band emission sources, e.g. laser diodes (also VCSEL). An extremely high spectral resolution of up to 0.12 nm half-band width and integration times as short as 4 ms enable fast testing in the laboratory and production. The temporal measurement of laser diodes with a pulsed operating mode in the nanosecond range is also possible in an expanded assembly with photodiode, and will be demonstrated at the stand.

Simultaneous measurement of several wavelength ranges and samples

Instrument Systems offers smart high-end solutions for complex spectral measurements that are to be made simultaneously over an extremely broad wavelength range, or over several samples. Several spectroradiometers of the CAS series are controlled in parallel by a trigger box. Due to the combination of different CAS models, a very broad wavelength range from UV to IR can be simultaneously analyzed in a single measurement. The MultiCAS module of the accompanying SpecWin Pro analysis software evaluates all measurement data in a user-friendly manner and in a combined measurement curve. Reflection measurements on solar cells (broad wavelength range) or colorimetry in the automotive sector (at a number of measurement setups simultaneously) are thus fast, precise and simple.
