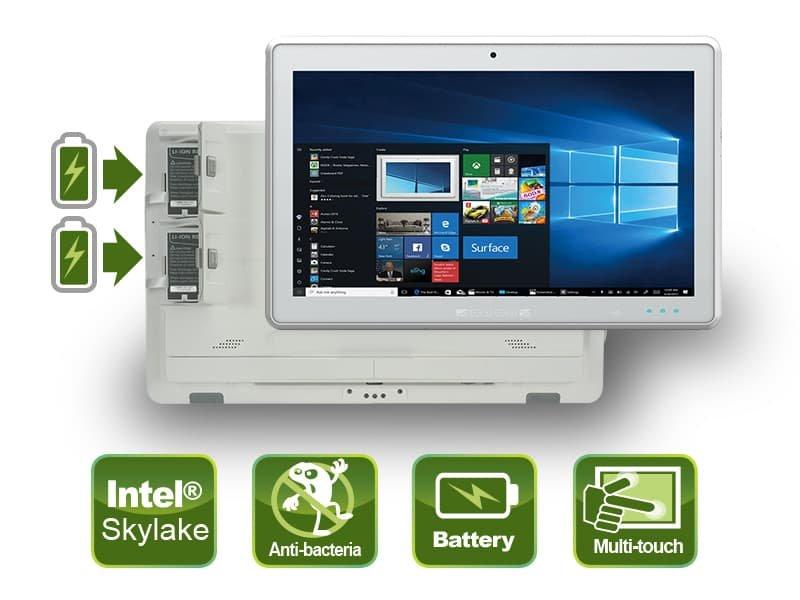

The POCm-W is available in the display sizes 21.5" and 23.8" with a resolution of 1920×1080 and a projected-capacitive touch. The Touch is optimized for the use of multi-layer gloves and the detection of splash water and water drops. The housing is anti-bacterial, offers an IP65 front protection and a back with IP32 protection. A passively cooled version with Intel® mobile ULT Core™ i7-6600U, i5-6300U and Celeron® 3855U is offered. The POCm-W is pre-equipped with 4GB DDR4 RAM and can be extended up to 32GB. For storage media, both a 2.5" SATA drive bay accessible from the outside and two M.2 interfaces with RAID functionality are available. Furthermore the POCm-W offers two GbE network interfaces, two HDMI, two RS-232/422/485, four USB 3.0, two USB2.0, as well as audio connections. A 5 megapixel webcam with auto focus and digital microphone, two 3 watt loudspeakers and WLAN functionality complete the features for use in a mobile environment. In addition to the battery docking station and the Li-Ion batteries, a USB VoIP telephone with holder, a magnetic card reader, a Mifare RFID reader, a TPM module and cable covers are available as accessories. Upon customer request, ICP assembles the POCm-W with the desired operating system and suitable industrial components.
Specifications
- 21,5” and 23,8” fanless Panel PC with Full HD resolution
- Gen. Intel® Core™ i5/i3/Celeron® processors
- PCAP projected-capacitive multi-touch screen
- Anti-bacteria housing with IP65 front bezel and IP32 rear cover protection
- Three hot-swappable batteries with a total runtime of 8 hours
- EN60601 medical certified
Applications
- Medical carts
- Mobile applications
- Nursing facilities
- Hospitals
- Retirement homes
Product link: https://www.icp-deutschland.de/…
Datasheet: https://files.icp-deutschland.de/…
