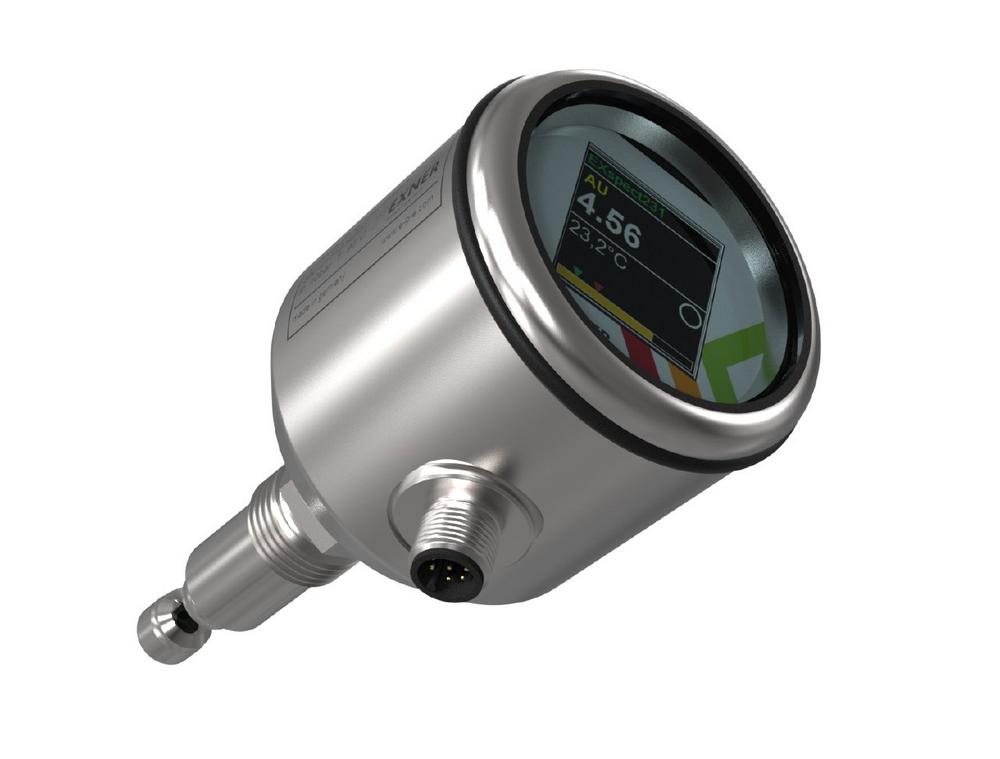

With the EXspect 231 absorption sensor, EXNER brings a measuring device to market which can be reliably used to determine turbidity in a multitude of processes. The new type is based on the tried and tested EXspect 230 and EXspect 250 sensors. The robust stainless steel housing of the sensor has a hygienic design and is executed in protection class IP69. The measurement itself is done in the near infrared range (NIR) with a wavelength of 850 nm, which allows colour-neutral measurement. The LED light source and the detector are protected by a durable sapphire window. Cleaning by means of CIP / SIP processes is possible. For the calibration and verification of sensors in the field NIST-traceable reference filters are available.
Thanks to its hygienic and simultaneously robust design, the EXspect 231 sensor can be used for a wide variety of applications not only in the food industry, but also in the processing industry, as well as in environmental technology. Applications like the monitoring and control of separators, the determination of yeast concentrations in breweries, concentration measurement in the headbox in paper production, and the monitoring of purification processes in dairies, for example, are belonging to the areas of application.
The sensor is available in a variety of configurations and can thus be optimally adapted to suit the customer’s requirements. The new EXspect 231 type replaces the previous sensor types 230 and 250 of the EXspect range.
EXNER Process Equipment GmbH, based in Ettlingen, is in the middle of the Karlsruhe technology region. The medium-sized company has operated as an international provider of high-quality process holders for pH measurement and optical sensors for the determination of cell growth and turbidity for 15 years. The owner-run company is characterised in particular by its accurate and long-lasting products, its agile and flexible way of doing things, and customer-specific solutions. The products developed and produced by the ISO9000-certified business offer the highest degree of variability and can therefore be configured to meet almost any requirement. Customers from the chemical industry, in the bio and food technology sectors, and the pharmaceutical industry all benefit from their consulting and support services, as well as their innovative research and development division. Thanks to the combination of their expertise gained over many years and the use of new technologies, their products are being continuously developed and optimised for each area of application. So, the processes become safer, more efficient, and more accurate. In addition, EXNER products are being supplied by distribution partners and OEM customers all over the world.
For further information, please visit: www.e-p-e.com
Exner Process Equipment GmbH
Carl-Metz-Straße 26
76275 Ettlingen
Telefon: +49 (7243) 945429-0
Telefax: +49 (7243) 945429-99
http://www.e-p-e.com
Produktmanagement
Telefon: +49 (7243) 94542925
Fax: +49 (7243) 945429-99
E-Mail: timo.hanselmann@e-p-e.de
