High-level geometrical resolution

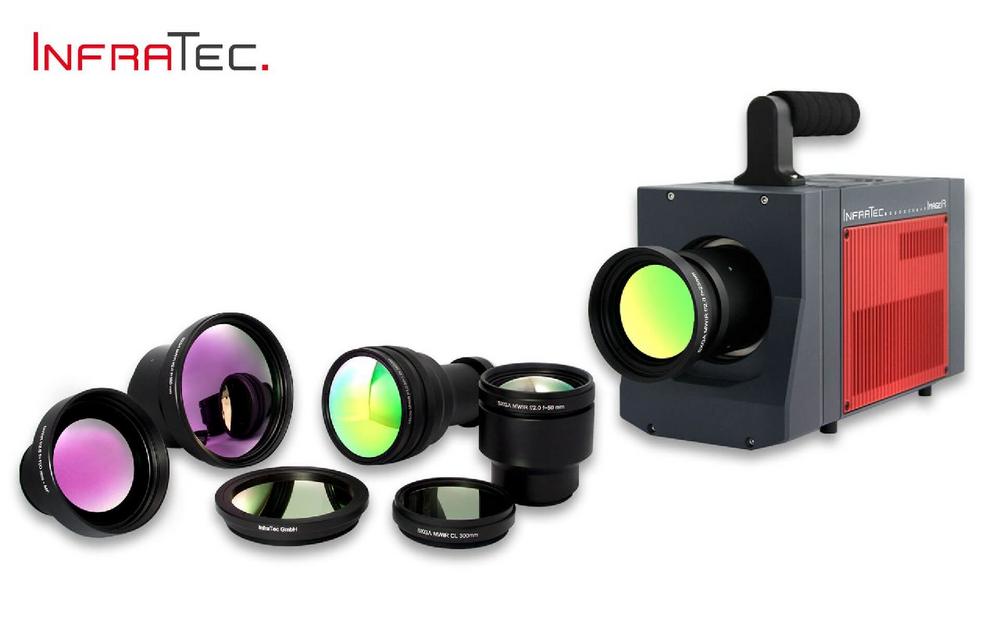

The special feature of the ImageIR® 9500 is clearly its cooled FPA photon detector. This is based on highly sensitive mercury cadmium telluride (MCT) and has a 16:9 HD format with (1,280 x 720) IR pixels. Due to its high native geometrical resolution, smallest structures on large-scale objects can be analysed in detail. The combination with a high-performance microscopic lens enables the display of structures of up to 1.5 μm in size. Users save valuable time by reducing the number of required single recordings while avoiding geometrical measurement errors.
Even more efficiency is achieved by using InfraTec´s unique MicroScan function. Thanks to this, the geometrical resolution can be increased to 3.7 Megapixels in full-frame. Images of this quality show the measurement objects in extremely high resolution.
Predestined for solving the most demanding measurement and testing tasks
Based on such values it is clear that the ImageIR® 9500 is ideally suited for international usage in scientific and research institutions. Other technical features of the camera underline this profile. This includes the thermal resolution of up to 0.025 K. It supports the reliable detection of very small temperature differences on measurement objects and creates the requirements for creating noise-free thermal images. IR frame rates up to 1.5 kHz in quarter-frame together with extremely short integration times of only a few microseconds provide users with the ability to analyse fast-running thermal processes.
Comparable to other infrared cameras of the ImageIR® series, this model is also extremely flexible to configure. The camera comes with latest detector linear cooler technology. Its modular design provides convenient retrofitting with components such as motorized focus, internal high-speed shutters as well as motorised filter respective aperture wheels. This means that users can easily solve their measurement tasks – no matter what field of application they are working in.
Die InfraTec GmbH Infrarotsensorik und Messtechnik wurde 1991 gegründet und hat ihren Stammsitz in Dresden. Das inhabergeführte Unternehmen beschäftigt mehr als 200 Mitarbeiter und verfügt über eigene Entwicklungs-, Fertigungs- und Vertriebskapazitäten.
Mit dem Geschäftsbereich Infrarot-Messtechnik zählt InfraTec zu den führenden Anbietern kommerzieller Wärmebildtechnologie. Neben der High-End-Kameraserie ImageIR® und der Produktfamilie VarioCAM® High Definition bietet das Unternehmen schlüsselfertige thermografische Automationslösungen.
Infrarot-Sensoren mit elektrisch durchstimmbaren Filtern auf MOEMS-Basis zählen neben spektral ein- und mehrkanaligen Infrarot-Detektoren zu den Produkten des Geschäftsbereiches Infrarot-Sensorik. Die Detektoren kommen z. B. bei der Gasanalyse, der Feuer- und Flammensensorik sowie der Spektroskopie zum Einsatz.
