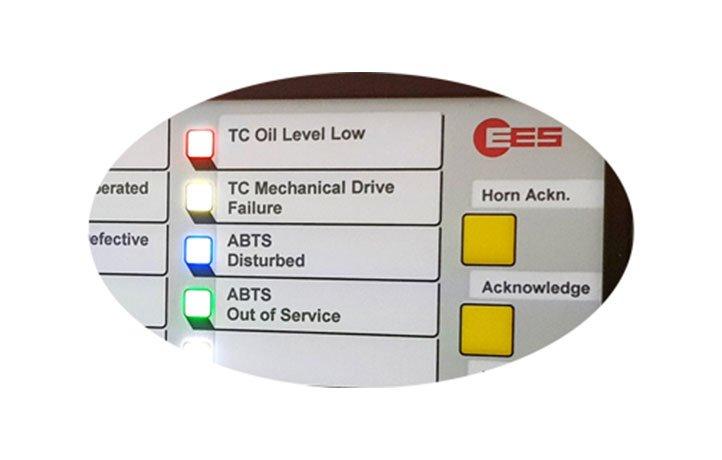

From end of the year RGB LEDs with 6 colours will be available to adapt to the specific alarming needs on site. Brilliant colours in green, red, yellow, orange, white and blue represent the status of an input. Moreover analog cards with comprehensive settings are available soon providing the actual value on all protocol types i.e. IEC 61850, 60870-5-104 or Modbus, else signaling the under or overrun of a threshold via the digital inputs. Additionally in between or out of range monitoring is provided.
As maximum 20 analog values can be processed in one device. The analog cards can be mixed with other cards such as relay cards. Voltage ranges between 0V and +/- 10V or currents between 0 (4) … 20mA can be applied individually to each input. The whole configuration is carried out through the integrated web server, on which as well the physical SI can be shown, e.g. 43,27°C.
Thus makes the USM not only a common annunciator anymore, it is more and more becoming an I/O data turntable.
EES is a family owned mid-sized company, combining technological expertise and innovation for more than 40 years. We provide high-value solutions in the range of fault annunciating and telecontrol systems.
Today we are contributing with a comprehensive lineup to increase availability and operation reliability of countless energy generation and distribution plants all over the world, especially in the Middle East region since more than 20 years.
Our products serve todays and upcoming requirements in high-voltage and medium-voltage applications, by sophisticated design and innovative functionality. The latest product generation is a breakthrough in the field of substation automation with IEC 61850 and offers also links to superior SCADA Systems over IEC 60870-5-104. Our products are based on recognized market standards. Adaption to process parameters on-site can easily be done e.g. by integrated Web-Server.
Reliable signal transmission on various media is also a core competence of EES. In the field of transmitting data over radio or cable networks, we offer a very adaptive system which can be set-up by the customer without any software.
Furthermore we secure the long-term availability of spare parts for our products. EES is certified by Dekra Corporation to comply with DIN EN ISO 9001:2015 and 14001:2015 standards.
