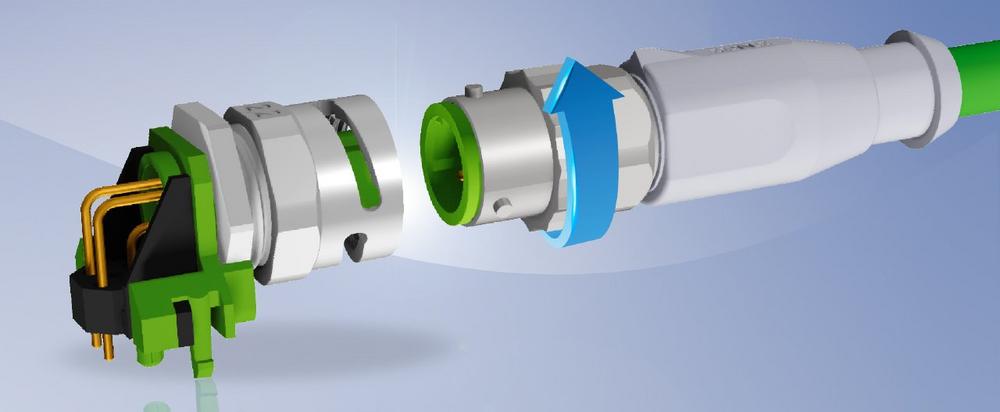

The new M12 bayonet variant by CONEC does not require any additional tools in order to meet the mechanical and technical requirements with regard to tightness against dust and liquid media in industrial environments. In locked state, the IP67 degree of protection is met. The CONEC bayonet locking variant thus offers the user simplified handling and secure transmission of signals and data at the same time.
The print-coupling socket variants are also equipped with an internal thread in the mating area and thus guarantee 100 % backward compatibility with standard M12 connectors. This means that new systems can be equipped with the M12 bayonet on the device side without any problems.
As standard, the M12 bayonet series is presented in with A and D coding. The print sockets are available in axial and angled form for rear wall mounting and with a panel
thickness of 2.2 mm.
Other codings can be offered on request.
