Potential equalisation according to DIN 42801 with PE contact Stäubli S6/15
The new MHG2 power supply series is equipped with a nickel-plated plug of type Stäubli S6/15 for the safe potential equalisation according to DIN 42801. With this, the supplied computer system can be kept at the same potential with other components if necessary.
2xMOPP patient protection and international safety approvals
The isolation between input and output is 3000 VAC and thus complies with the safety standard 2xMOPP (Means of Patient Protection). Certified to the strict medical standards EN / UL / cUL 60601-1 and CCC, the new MHG2 PC power supplies can be used almost worldwide in medical computer systems. The AC wide-range input of 90 to 264 VAC (47 … 63 Hz) with active power factor correction (PFC) enables the supply of a wide variety of AC grids.
Highly efficient and robust 24/7 power supply design
The sophisticated and highly energy efficient switching power supply topology of the new MHG2 series meets the 80PLUS® GOLD specification. The use of high quality components ensures maximum reliability and system availability in 24/7 continuous operation. For example, Japanese brand capacitors of +105 °C rating significantly increase the life of the power supply – even at high operating temperatures. Mechanically, the FR4 board material used has a significantly higher dimensional stability. The through-connection of the printed circuit board ensures long-lasting and stable solder joints.
Pleasantly quiet due to optimized fan control
The fan control has been further optimized in the new MHG2 series, so that the double-ball bearing and temperature-controlled brand fan is particularly quiet and therefore ideal for use in practice and treatment rooms. In addition, the medical PC power supply is equipped with a tacho signal monitoring, which ensures the correct operation of the fan at any time.
Extensive value-added services for medical and laboratory technology
In addition to the three-year device warranty, Bicker Elektronik GmbH guarantees a long-term availability of at least 5 years. In particular, long-running applications in medical and laboratory technology benefit from optimum investment protection and long-term availability. Beside individual design-in advice and first-class service & support from Germany, the engineers at Bicker Elektronik can also implement customer-specific special solutions upon request. The range of services is rounded off by comprehensive laboratory and measuring services for complete customer systems as well as performance profile analyzes for the exact dimensioning of the power supply.
One-Stop Solutions: Tailored Power+Board bundles from a single source
Especially in medical technology, the perfect interaction of all components of a computer system is of decisive, if not even life-sustaining importance. When developing embedded PCs or stand-alone units, developers face the challenge of qualifying core components like mainboard, processor, memory and power supply in many ways. Even the selection of power supplies and mainboards on the market today is almost unmanageable varied. Here, Bicker Elektronik offers a unique service with its tailor-made Power+Board bundles: System developers receive exactly matching bundles consisting of high-quality power supply solutions and industrial mainboards from well-known manufacturers, as well as suitable processors, memory solutions, expansion cards and mass storage in industrial quality and fixed BOM (Bill Of Materials). All core components of a computer system can be conveniently obtained from a single source. With the preconfigured and perfectly matched bundled solutions, customers of Bicker Elektronik save themselves a lot of time and money for product qualification and thus shorten time-to-market within the system development.

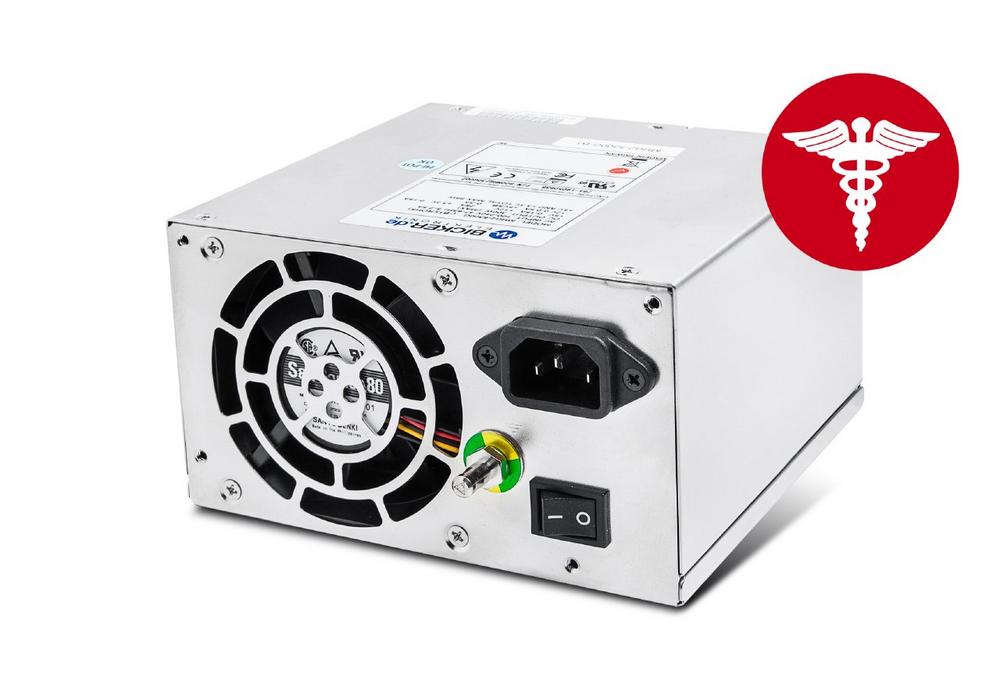

The new Bicker MHG2 series
All features at a glance
- Reliable ATX PC power supplies for medical technology
- Available in three performance classes 300 Watt, 400 Watt and 500 Watt
- Certified to EN / UL / cUL 60601-1, CCC
- Medical safety standard 2x MOPP
- Nickel plated PE Plug Stäubli S6/15
- Potential equalisation according to DIN 42801
- High quality electrolytic capacitors
- Wide range input 90…264 VAC, active PFC
- Very quiet due to optimized fan control
- Ball-bearing brand fan with tacho signal
- Temperature range -20…+70 °C
- 80PLUS® GOLD
- Suitable for 24/7 continuous operation
- Long-term availability at least 5 years
- 3 years warranty
Direct link to MHG2-5300G-B1 (300 Watt): https://www.bicker.de/index.php/eng/Products/Medical-applications/Medical-grade-PC-PSUs/MHG2-5300G-B1
Direct link to MHG2-5400G-B1 (400 Watt): https://www.bicker.de/index.php/eng/Products/Medical-applications/Medical-grade-PC-PSUs/MHG2-5400G-B1
Direct link to MHG2-5500G-B1 (500 Watt): https://www.bicker.de/index.php/eng/Products/Medical-applications/Medical-grade-PC-PSUs/MHG2-5500G-B1
Based in Donauwoerth/Germany, Bicker Elektronik GmbH has been developing, manufacturing and selling highly reliable power supply solutions (3 to 24,000 watts), UPS systems and system components for 25 years. These include industrial, IPC and medical power supplies, encapsulated modules, DIN rail power supplies, DC-DC converters and modular DC UPS systems with long-life energy storage devices (Supercaps, LiFePO4, Li-Ion or lead batteries) for uninterruptible power supply. The portfolio is rounded off by matching industrial mainboards from manufacturers AAEON, ASRock, Avalue, Fujitsu and Perfectron. The perfectly matching "Power+Board" bundles save valuable time and money in system development. In addition, Bicker Elektronik offers suitable processors and storage solutions in industrial quality. The high product quality, excellent service and extensive know-how in development offer decisive added value for the international customers of Bicker Elektronik. With personal design-in consulting, many years of experience and flexibility in the implementation of individual requirements, Bicker Elektronik provides its customers with the right tailor-made solution in a timely manner. The extensive warehousing at the headquarters in Donauwoerth also guarantees a fast and timely delivery. The company is TÜV certified according to ISO 9001: 2015. The target markets of Bicker Elektronik are Industry 4.0 / IIoT, automation technology, robotics, medical and laboratory technology, measurement and control technology, transportation, maritime, energy, communication and information systems, gaming, POS/POI, digital signage, safety and building technology.
