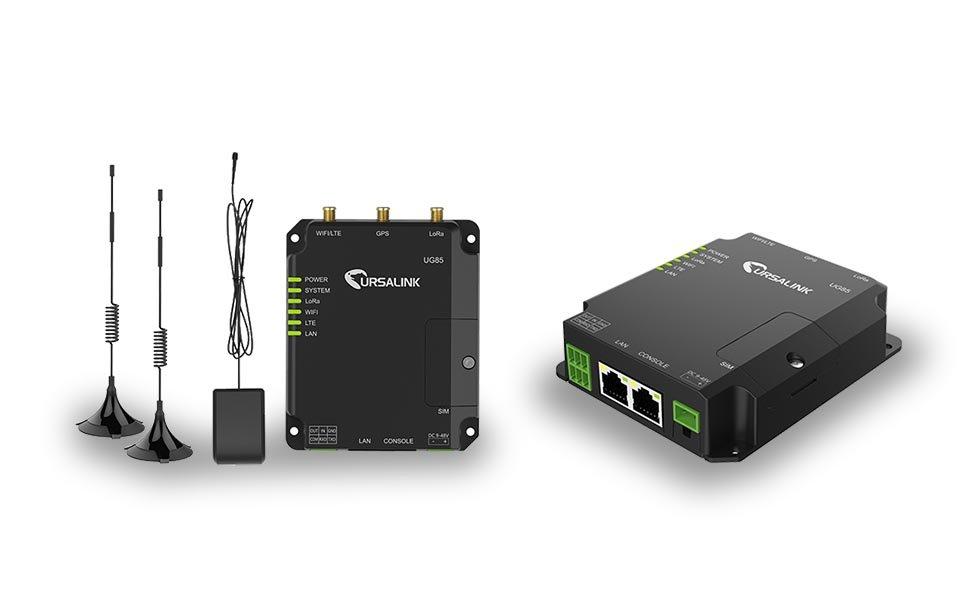

The gateway functionality can optionally be extended by 3G/4G mobile radio with dual SIM slot and IEEE802.11 b/g/n/ac WiFi. GPS with an accuracy of less than 2.5 meters is also available as an optional extension. The UG85 supports a variety of network protocols, VPN tunnels, access authentication, firewall functionalities and management options. The serial port can be operated in transparent mode (TCP Client/Server, UDP), as Modbus Gateway (Modbus TCP on Modbus RTU) and as Modbus Master. The voltage input range of the UG85 is designed for the range from 9 to 48 volts DC. The typical consumption is 2.3 watts and under full load max. 6.5 watts. Optionally, the PoE 802.3 af/at functionality can be added to the Ethernet connection and the UG85 can thus be expanded to a Powered Device. The housing is IP30 protected and particularly compact with 108x90x26 mm (L/W/H). Wall mounting or DIN rail mounting is easily possible. The UG85 is designed for operation in a temperature range from -40 °C to +70 °C. The UG85 can be operated in a temperature range from -40 °C to +70 °C. From the sensor to the cloud, the UG85 offers system integrators a wide range of options for transferring their data to the cloud.
ICP. Industrial Computer Products …by people who care!
Datasheet:
Specifications
- Indoor LoRaWAN Gateway
- Up to 8 simultaneous channels
- Up to 10km range
- Interfaces: Ethernet, WiFi, 3G/4G mobile communications
- Compatible to LoRaWAN Class A and C
- Integrated DI, DO, Serial Ports and GPS
- Robust housing for indoor use
Applications
- IoT Applications
- SMART City
- SMART Infrastructure
- Sensor to Cloud
