Due to its two-channel technology each individual Sound Intensity Probe makes it possible not only to measure sound pressure levels but also to record the sound pressure gradient which is needed to calculate the sound intensity.
The SIS 190 double consists of the Measuring Microphone Capsules Pairs MK 290 E (2x MK 222 E) and MK 390 E (2x MK 301 E) with matched phase response and frequency response.
Due to the use of the 1/4” Measuring Microphone Preamplifiers MV 310, sound field distortions (shadowing and diffractions) are minimal. The distance between the microphone pairs is defined by spacers (6 mm, 50 mm). These enable measurements in a frequency range between 35 Hz and 12 kHz.
The quality of conformance between the microphone pairs with regard to their transforming functions is measured in compliance with DIN EN 61043 and documented as Minimum pressure-residual intensity index for probes. Each microphone capsule pair comes with a measuring protocol. It shows the tolerance limits for class 1 probes.
Product contents
SIS 190 double, IEPE*/ICP®, Measuring microphone preamplifiers 1/4" MV 310, Measuring microphone capsule pair 1/2" MK 290 E, Measuring microphone capsule pair 1/4" MK 390 E, 2 Adapter A 69.1 1/2"-1/4", Spacer 1/2" 50 mm, Spacer 1/4" 6 mm, Output 10-pin LEMO, connects to a handle, Case in aluminium.
Acoustic measurement technology since 1928

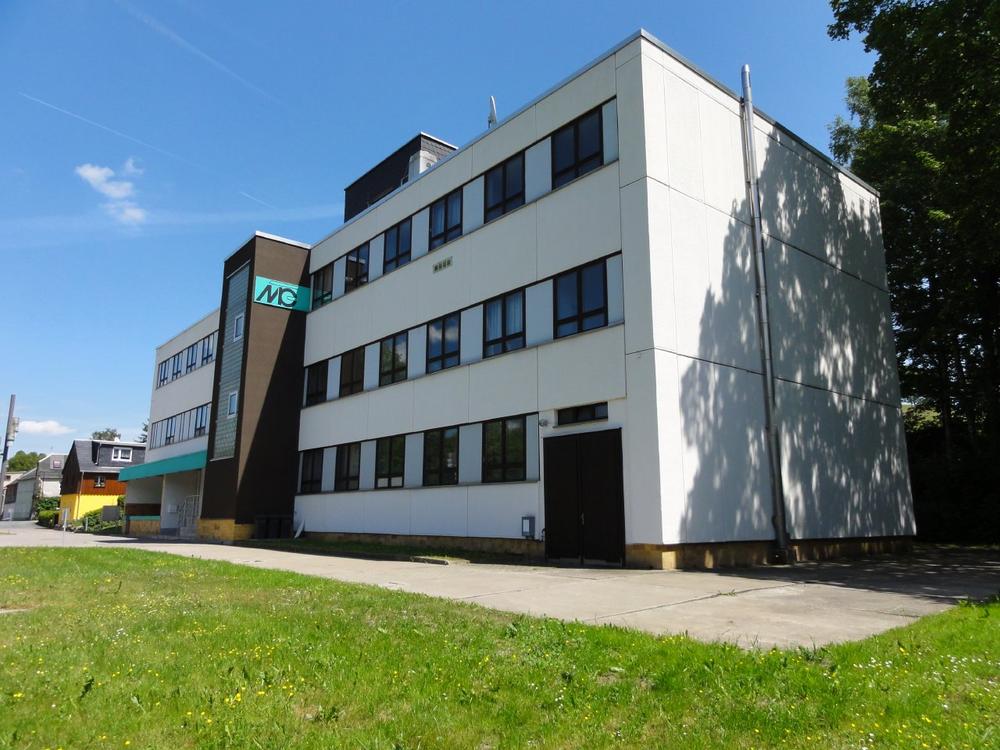

The Microtech Gefell GmbH is manufacturer of high quality, handmade measurement and studio microphones founded 1928 by Georg Neumann.
Besides the company offers calibration and services for all manufactured products.
The Measurement technology includes 1", ½" and ¼" measurement capsules, measurement preamplifiers for different connection techniques (Conventional Lemo, ICP®, Phantom P 48 XLR, Digital USB AES 42 XLR), outdoor and environmental microphones, microphone arrays, sound intensity probes, power supplies, calibration devices as well as turnkey solutions (e.g. special test benches for car acoustics).
