Variable desktop CPU
What makes the NANO H310 so special is the possibility to tailor the performance of the mini PC to individual needs. Desktop CPUs are available in all performance variants: starting with an Intel Pentium G5400 with 2 x 3.7 GHz, through the Intel® Core i3-8100 with 4 x 3.6 GHz, up to the six-core processors Intel ® Core i5-8400 with 2.8 GHz (max. 4.0 GHz) and – for all those who have particularly performant applications – Intel® Core i7-8700 with 3.2 GHz (max. 4.6 GHz).
Compact digital signage player
With the powerful CPU and the ability to simultaneously display a resolution of 4K (3840 x 2160 pixels) on two screens, the NANO H310 is perfect for digital signage applications. But, thanks to its good price, it is also often used as an all-rounder. The hardware is cooled by a fan and is in a square metal housing with the dimensions 178 x 178 millimeters. Thanks to a height of just 34 millimeters, the industrial PC is quite flat and therefore also fits behind screens, where it can be installed in accordance with standards thanks to the VESA wall mount. And if you don’t want to hang up your NANO, you can put it upright with the included stand to save space.
Connections for industrial control and digital signage

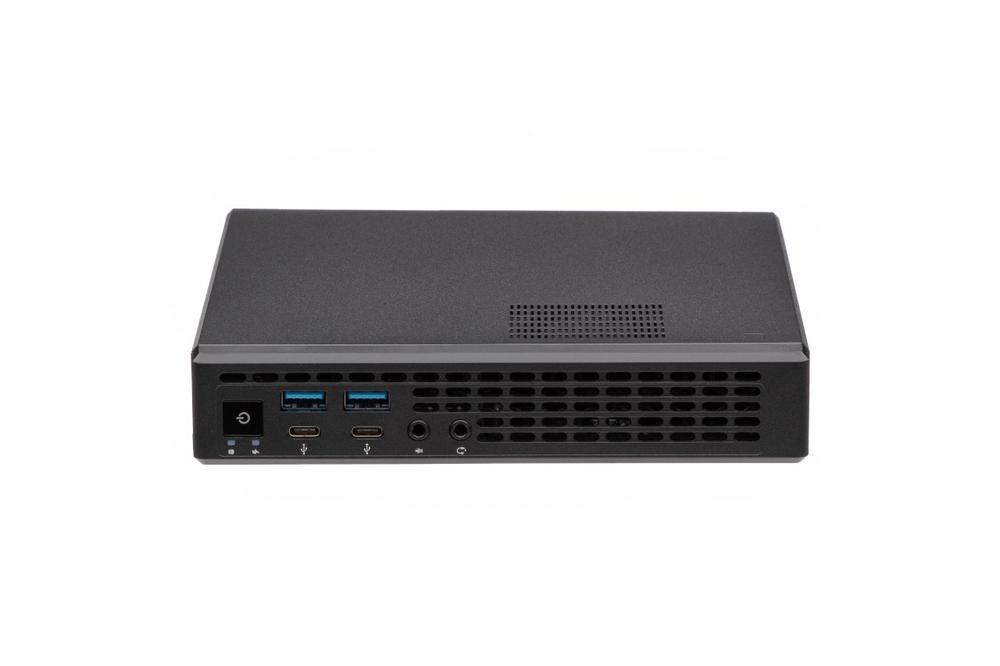

The front of the mini PC has been updated. In addition to two USB 3.1 interfaces, there are now two USB Type C. Besides, there is also the power button and the two audio connections LINE OUT and MIC OUT. A MIC IN can be found on the back panel. Furthermore there are four USB 2.0 interfaces, one COM and one LAN. An HDMI 1.2, a DisplayPort 1.2 and a VGA connection are available for the transmission of multimedia content. If you want to use your NANO H310 in public places, you can use the Kensington Lock to protect it against theft. The industrial PC can optionally be equipped with WiFi.
Windows 10 and Linux
Like all current industrial PCs, the NANO H310 with Windows 10 is available in the variants Home, Professional and IoT Enterprise. Linux Ubuntu can also be installed.
Anyone who needs an inexpensive digital signage player with a high-performance desktop CPU is well advised with the NANO H310. The Mini-PC is available from now on and can be ordered at https://www.spo-comm.de/en/.
Highlights and technical data at a glance:
- CPU: Intel® Pentium G5400, 2 x 3.7 GHz, Intel® Core i3-8100, 4 x 3.6 GHz, Intel® Core i5-8400 6 x 2.80 GHz (max. 4.0 GHz), Intel® Core i7-8700, 6 x 3.2 GHz (max. 4.6 GHz)
- Chipset: Intel® H310
- RAM: Up to 32GB DDR4
- 1x SSD/HDD: Up to 960 GB
- Max. resolution: 3840 x 2160 @ 60Hz
- Up to 2 independent displays
- Dimensions (W x D x H): 178 x 178 x 34 mm
- VESA mount and stand included
- Ambient conditions: 0°C to +40°C and 0~90% of non-condensing moisture
Connections:
- 4x USB 2.0
- 2x USB 3.1
- 2x USB 3.1 Type C
- 3x Audio (MIC IN, MIC OUT, LINE OUT)
- 1x HDMI 1.2
- 1x DP 1.2
- 1x VGA
- 1x LAN
- 1x Kensington Lock
- 2x Antenna port
- WiFi optional
spo-comm offers Mini-PC solutions for industry and trade in Germany and Europe with special expertise for digital signage. The company was founded in 2003 by its CEO is Michael Sporrer. The Mini-PC specialist offers a wide range portfolio from hardware, software and services up to complete supply chain management – always with a perfect fit. Thanks to the great customer support and technical teams spo-comm carefully meets the customer’s requirements. spo-comm has a dense network of hardware partners, and is is one of the most important of MSI IPC partners in Europe.
