Hinge expands range of applications for the mul-ti-waler

And now the possible uses have been further expanded with the multi-waler hinged part.

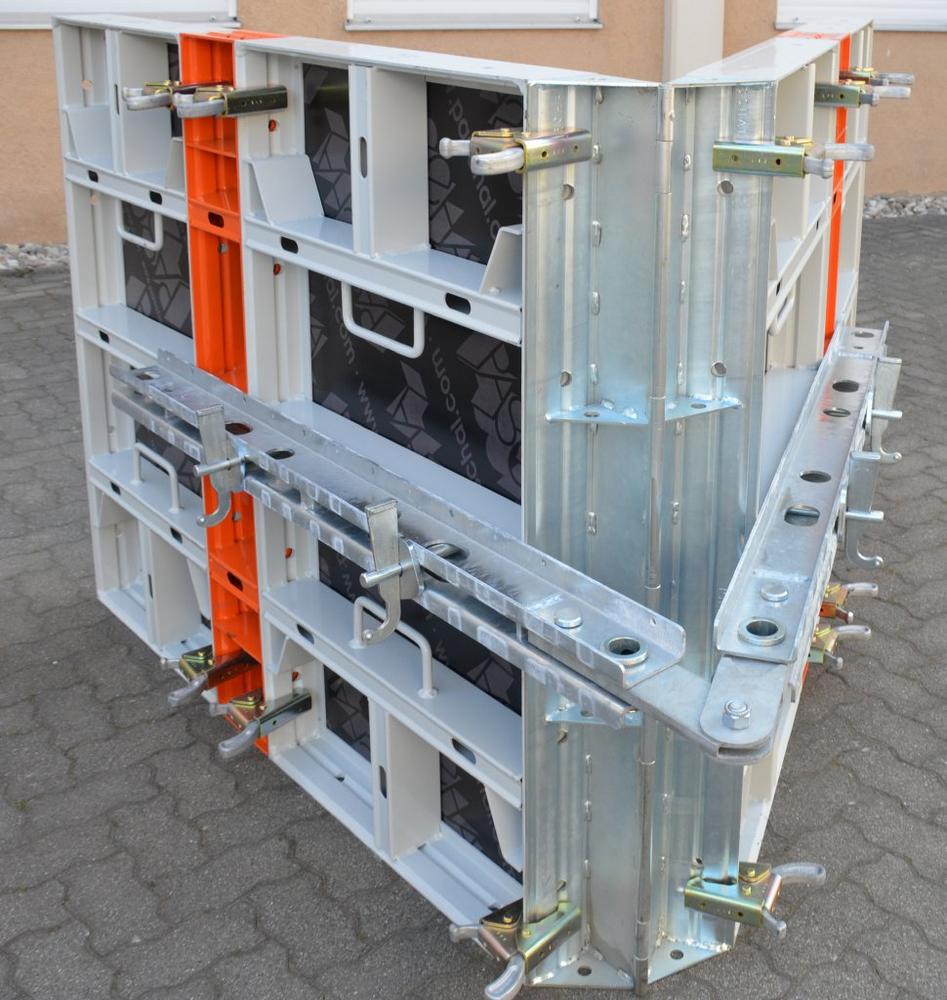

In order to offer a practical connecting element for both acute- and obtuse-angled concrete structures for construction companies, PASCHAL further developed this product by creating the hinged part of the lightweight multi-waler.

Acute- to obtuse-angled structures

As such, angled structures ranging from an acute 60° to an obtuse 150° can be tied. Panel connections mounted around corners can thus be simply, easily and rapidly stiffened.

Fewer parts for a better overview

Two multi-walers can be joined with a force-fitted connection via the hinged part with bolts with a security pin – stiffening panels around corners couldn’t be easier!
The 1.40 m-long multi-waler can be connected to the formwork panels using a LOGO clamping piece or, alternatively, using hook headed bolts and a plate with ball-and-socket joint or a waler support DW 15.
