With the 1151 processor socket and the Intel® C246 chipset, the MX1-10FEP-D supports both the 8th and 9th generation XEON and Core I processors from Intel: both 35 Watt CPU variants and CPUs with up to 80 Watt. Up to 32GB ECC or non-ECC DDR4 2666 MHz memory can be installed depending on the processor variant. The Intel HD graphics provides an HDMI, a display port and a DVI-I output. Three 2.5" installation frames, one of which is designed as a removable medium, two Mini-PCIe slots with mSATA support, one M.2 2242/2260/2280 slot with PCIe x4 signal, one M.2 2230, one PCI Express x16 and one x1 interface can be accommodated in the 8.5 liter case. Both the PCIe x16 slot and the case have been designed for the operation of graphics cards. This makes the MX1 perfectly suited for AI applications that use graphics performance for calculation.

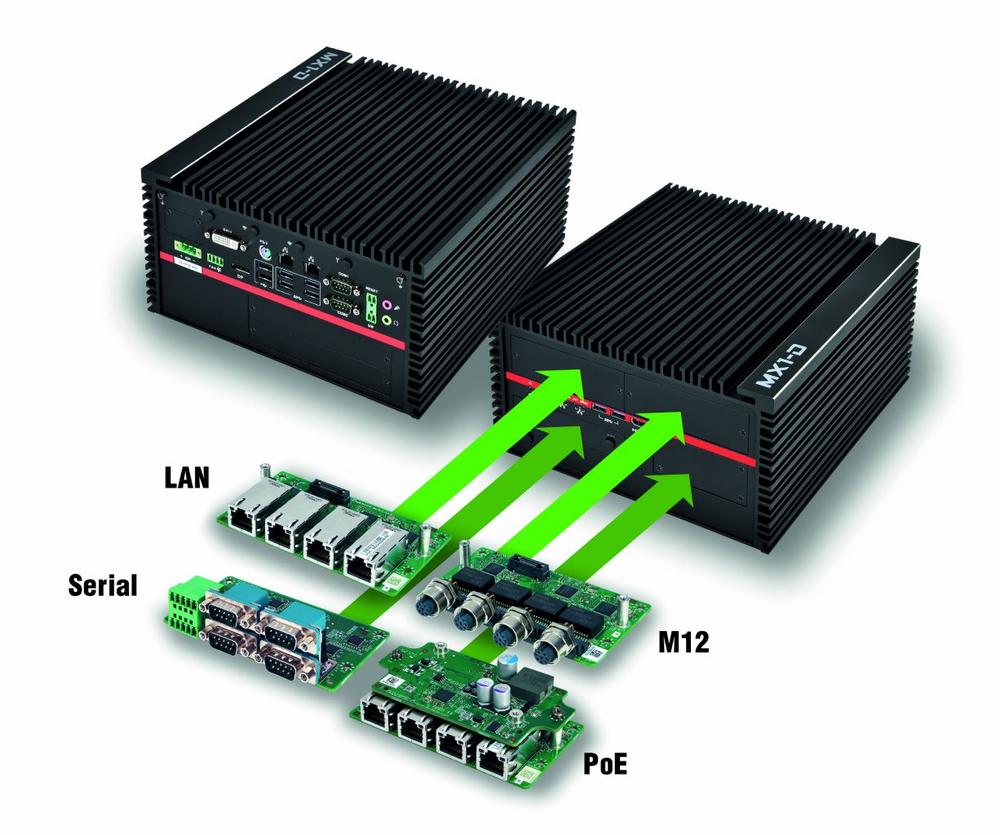

The MX1 also offers connection options for remote power ON/OFF and remote reset. This allows the MX1 to be placed and operated in places that are difficult to access. Also integrated are one Intel i219-LM and one i210-IT GbE LAN port, four USB 3.1, two USB 3.0, two USB 2.0, PS/2, two RS-232/422/485, two SIM card holders and three expansion bays for optional MX1 expansion modules. The expansion modules available are quad LAN with RJ45 with and without PoE+ functionality, quad LAN with M12 connector with and without PoE+ functionality, a dual RJ45 PoE+ module, an isolated quad combo RS-232/422/485 and 8-bit DIO interface and a Vehicle Power Ignition module. The MX1 can withstand ambient temperatures from -40 °C to 70 °C, depending on the CPU type, and has EN50155 and E-MARK certifications for vehicle and railway operation. With a voltage range of 9 to 48 Volt DC, the MX1 covers a very wide range, industrially designed with reverse power control, overvoltage and overcurrent protection.
In order to be able to exploit its extremes, ICP supplies the MX1 with matching industrial main memories and storage media as a ready-to-use system.
ICP. Industrial Computer Products …by people who care!
Productlink:
https://www.icp-deutschland.de/index.php?stoken=27B5DEE9&lang=0&cl=search&searchparam=mx1-10FEP-D
Datasheet:
https://files.icp-deutschland.de/produkte/KC002411/web/icp/MX1-10FEP-D-datasheet-20200403.pdf
