Analog Devices‘ Integrated Isolated RS485 + Isolated Power Transceivers Reduce Design Time

• Download data sheet, order samples and evaluation boards: https://www.analog.com/en/products/adm2867E.html

• Connect with engineers and ADI product experts on EngineerZone®, an online technical support community: https://ez.analog.com/interface-isolation

• Find application notes and technical articles about digital isolation technology from ADI: https://www.analog.com/en/products/interface-isolation/isolation.html

This isolated RS485 + integrated isolated power transceiver series includes smart features that reduce end system install and debug time allowing for easy correction of installation-based connection errors. With the trusted safety of iCoupler digital isolation and IEC 61000-4-2 ESD, signal integrity is maintained in the harshest of environments.

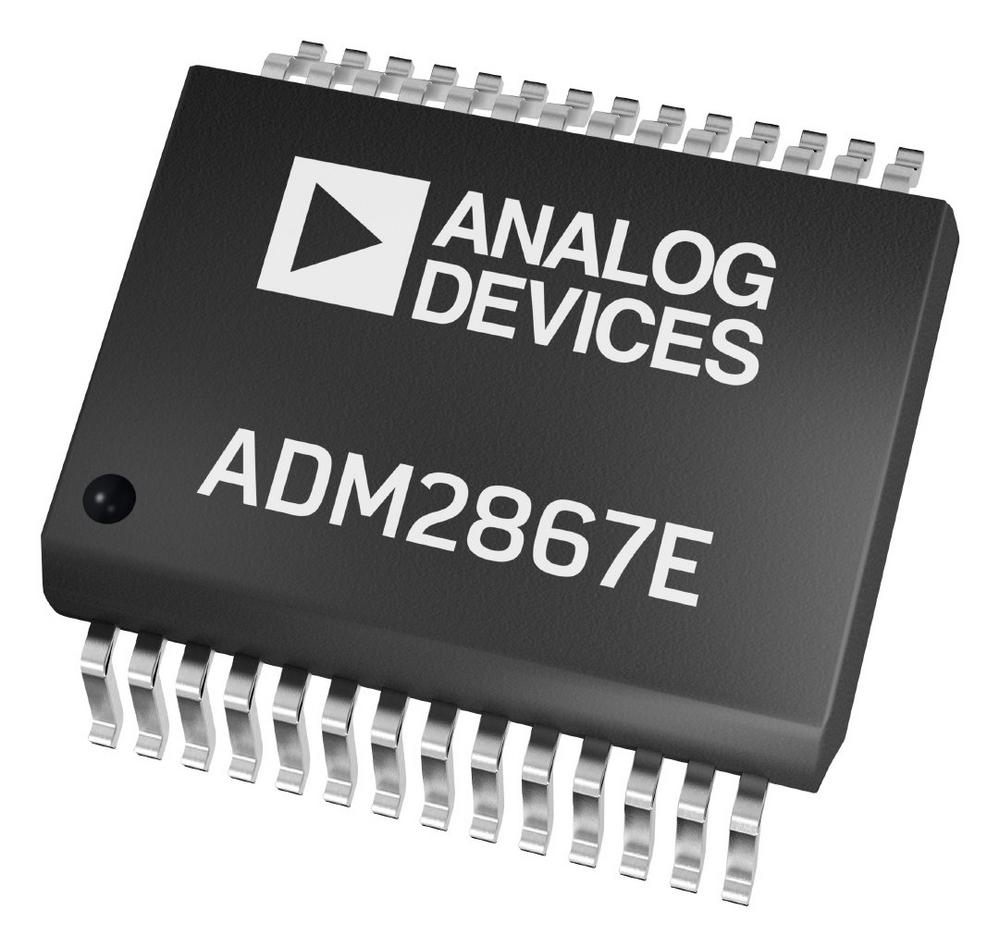

ADM2867E Key Features

• 5.7 kV rms isolated full duplex RS-485/RS-422 transceiver with 8mm creepage
• Margin to CISPR32 Class B emissions on a 2-layer PCB without stitching capacitance
• Cable invert smart feature correct reversed cable connections while maintaining full receiver fail-safe feature

• Flexible supply rails with low voltage to interface to FPGAs and microprocessors and PROFIBUS support with a 5V isolated supply
