Create the perfect user experience with high-end light measurement technology

Meet the complete characterization of AR/VR devices

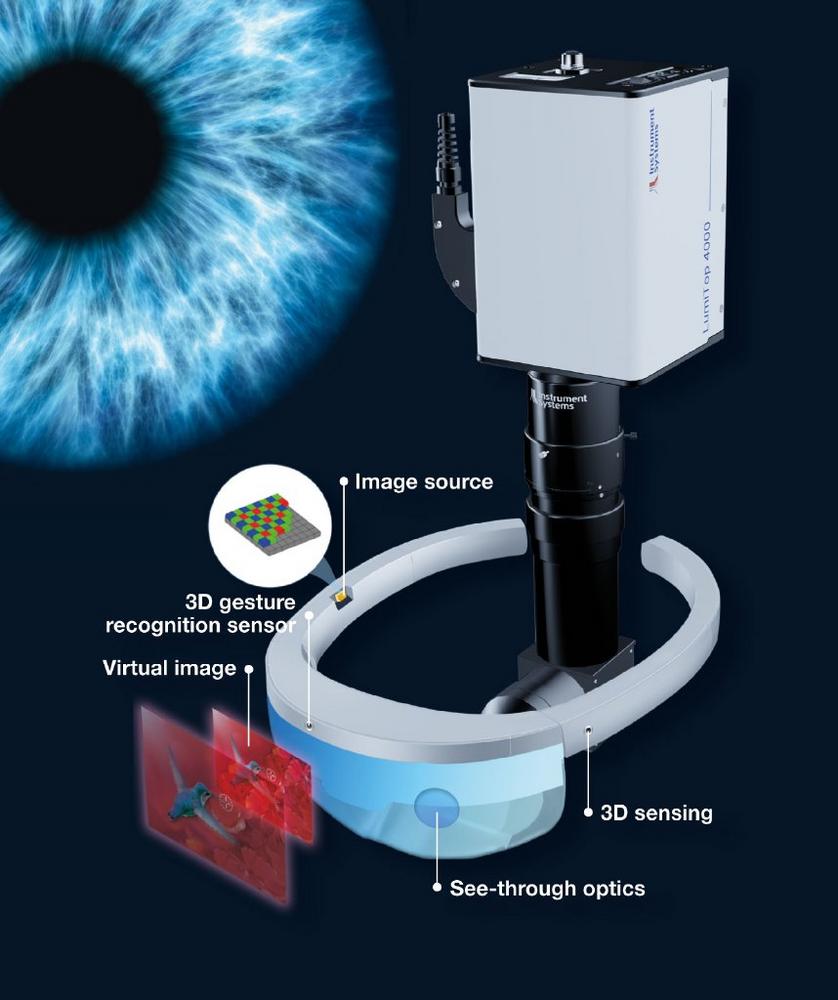

Perfect user experience for AR/VR headsets calls for extensive, fast and highly accurate optical tests during production. In order to meet this specific challenge, Instrument Systems has developed the LumiTop AR/VR 2D imaging colorimeter. The LumiTop’s AR/VR lens simulates the human eye and measures color and luminance exactly as seen by the user. The unique periscope design enables synchronized two-eye measurements, and the proven LumiTop principle guarantees fast, traceable, and highly accurate measurements. Besides the virtual display, AR/VR headsets contain several more types of light sources and sensors that enable users to immerse themselves in the virtual world. Also for those, Instrument Systems offers testing solutions, e.g. for the IR sources (NIR LED, VCSEL) often used for gesture and object recognition within an AR/VR headset.

• Virtual image test with LumiTop AR/VR
• Image source pixel test with LumiTop X150 up to 600 MP
• Angular resolved spectra with DMS goniometer
• 3D gesture recognition sensor test with far-field emission camera
• Time-of-flight sensor testing for pulses down to 1 ns

Take a Preview on LumiTop X20

A special highlight at Display Week 2021 will be the preview of the new LumiTop X20, upcoming in autumn 2021. Building on the established 2700 and 4000 models, the LumiTop X20 will offer a high-resolution camera, a flexible field of view and a high dynamic range for both high and low luminance measurements. Target applications for the X20 are the measurement of homogeneity (particularly high/low luminance) and defect detection.

Short Course S-2: Fundamentals of Display Metrology

As part of the virtual Display Week Program, Dr. Reto Häring,    Vice President Customer Solutions, will co-present a Short Course with members from Radiant Vision Systems and Konica Minolta. The course "Fundamentals of Display Metrology" will cover the principles and applications of display metrology, and introduce measurement equipment and techniques. Topics include the science of light and color, units of measurement, measurement standards, light measurement devices from spot meters to imaging equipment, test methods to quantify display performance parameters like mura, pixel uniformity, flicker, and the latest metrology solutions for testing emerging displays from µLED to AR/VR devices. The Short Course S2 will be presented by Dr. Reto Häring (Instrument Systems), Jens Jensen (Radiant Vision Systems), and Yutaka Maeda (Konica Minolta) and is available to view online Thursday 5/20/2021.

Presentation: Color Uniformity of µLED Displays: New Color Calibration Concept for Fast and Accurate Optical Testing

Displays require a high uniformity of luminance and color for a satisfying user experience. Consequently, most mass produced displays are tested by imaging light measurement devices (ILMD) to assure uniformity. The upcoming μLED display technology promises high contrast, fast response time, wide color gamut, low power consumption, and long lifetime. On the flip side, the technology is challenging for optical quality control, since μLED production tolerances with respect to color can currently be much larger than for LC and OLED display technologies. Especially the narrow spectral bandwidth of μLEDs can introduce large measurement errors due to the unavoidable mismatch between the measurement device’s physical color filters and the CIE1931 tristimulus functions. This presentation shows how the superior measurement accuracy of spectroradiometers can be extended to the faster optical quality test methods of imaging light measurement devices. This unique combination of advantages satisfies the μLED production requirements for speed and color accuracy at the same time. The presentation will be presented by Dr. Tobias Steinel (Instrument Systems) and is available to view online Friday 5/21/2021.
