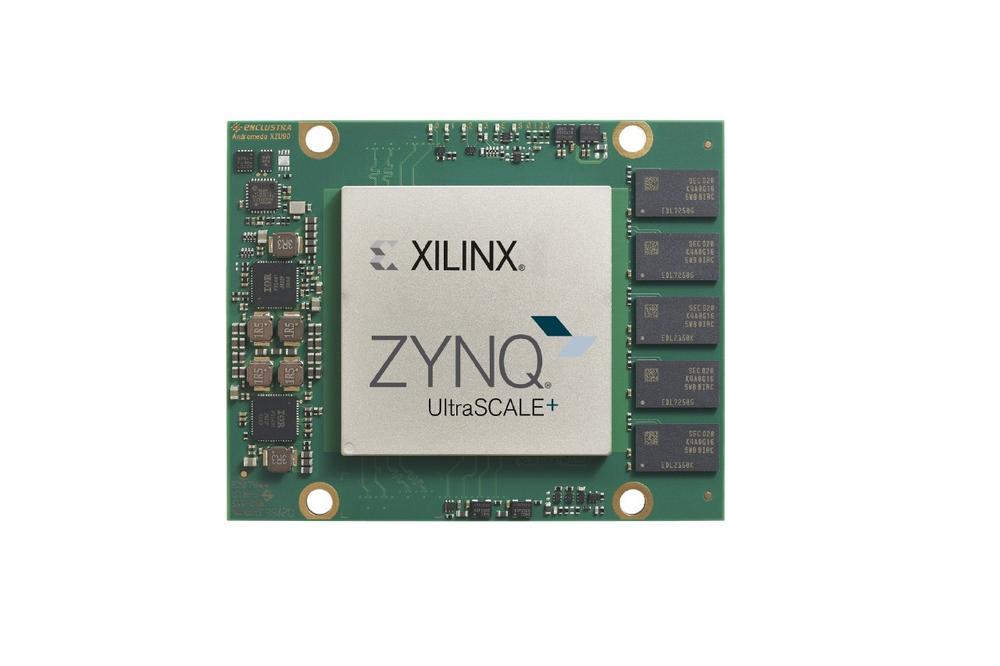

The Andromeda XZU90 system-on-chip (SoC) module (SOM) from Enclustra combines high-end Xilinx Zynq UltraScale+™ MPSoC-series devices with fast DDR4 ECC SDRAM, eMMC flash, dual parallel quad SPI flash, dual Gigabit Ethernet PHY, USB 3.0 and thus forms a complete and powerful embedded processing system. This module is suitable for high-speed applications due to the high number of transceivers and the superior module connector performance.
Thanks to its built-in Xilinx Zynq UltraScale+ MPSoC ZU17EG or ZU19EG device, the Andromeda XZU90 is the optimal solution for the most demanding applications. The SOM integrates up to 8 GByte of fast DDR4 SDRAM with Error Correction Code (ECC), a 16 GByte eMMC flash and a dual 64 MByte quad SPI flash. For communication, it offers up to 5 x PCIe Gen3 x16, Gigabit Ethernet PHY and USB 3.0 thanks to the 76 MGTs with up to 25 Gbit/sec – all on a tiny footprint of just 80 × 64 mm.
The Xilinx Zynq UltraScale+ MPSoC is manufactured in a 16 nm FinFET+ process and has 6 ARM® cores: four 64 bit ARM Cortex™-A53 with a clock frequency of up to 1333 MHz, and a 533 MHz 32 bit ARM® dual-core Cortex™-R5. The processors are supported by a Mali™-400MP2 GPU.
Reference design and Linux at the push of a button
Enclustra offers broad design-in support for their products and a comprehensive ecosystem for the Andromeda XZU90, offering all required hardware, software, and support materials. Detailed documentation and reference designs make it easy to get started. A user manual, user schematics, a 3D-model, PCB footprints and differential I/O length tables are all provided.
To build a Board Support Package (BSP) based on PetaLinux, Enclustra offers extensive guidance. Also, the necessary adjustments for the different boot modes (QSPI, eMMC, SD Card) are explained in detail.
Enclustra is an innovative and successful Swiss FPGA design services and solutions company, located in Zürich, Switzerland.
Enclustra provides services covering the whole range of FPGA-based system development: From high-speed hardware or HDL firmware through to embedded software, from specification and implementation through to prototype production.
Enclustra also develops and markets highly-integrated FPGA modules, System-on-Modules (SoM) and FPGA-optimized IP cores.
By specializing in forward-looking FPGA technology, and with broad application knowledge, Enclustra can offer ideal solutions at minimal expense in many areas. More information can be found at: www.enclustra.com
