The new solution for extreme centering tasks
A total of eight robust frame types are available in the ODU-MAC® Silver-Line. The P4+ impresses thanks to increased tolerance compensation with a radial play of +/- 4 mm. This ensures optimal compensation for misalignments and makes even extreme centering tasks possible.
Robust in any environment
Use cases for the P4+ frame include docking applications in industry and test and measurement engineering, as well as end-of-line testing and mechanical engineering. One possible use, for example, is as a charging interface for autonomous vehicles or for automatic docking during battery replacement. Furthermore, ODU-MAC® Silver-Line frames have already proven their durability and robustness in military vehicles.
Modular and ready for immediate use
The docking frames are available in custom lengths and can be flexibly equipped with the required modules. It is thus possible to transmit different media via a single connector. Choose a combination of signals, power, high current, high voltage, RF signals (coax), air or fluids, data transmission, and fiber optics. Get your hybrid connector as a complete solution including cable assembly – your interface will then be ready for immediate use.

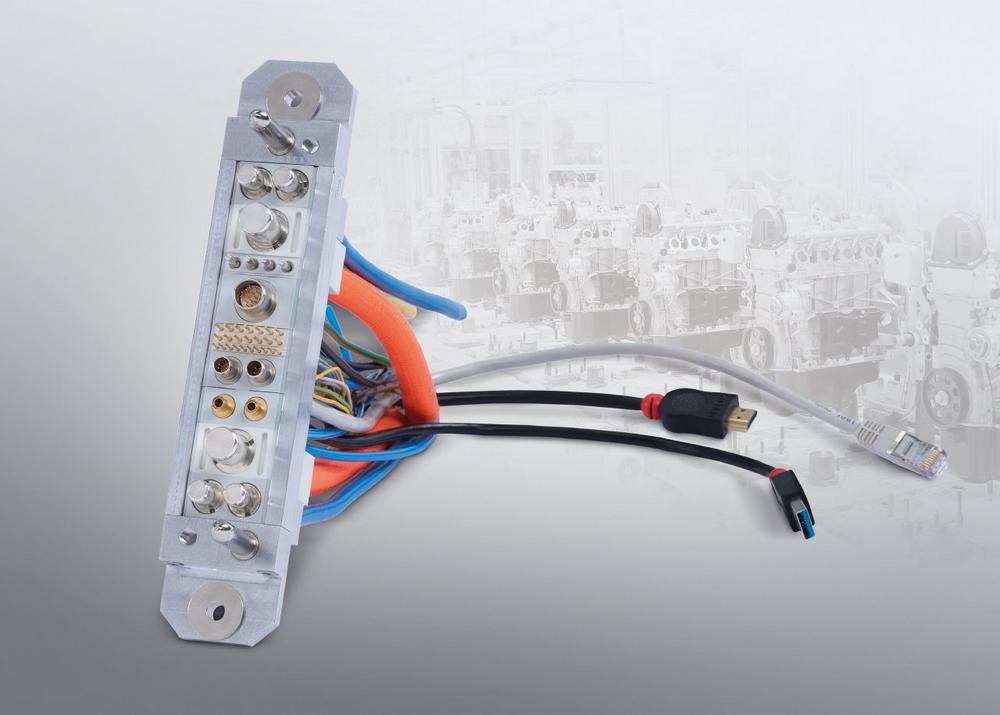

The P4+ frame at a glance:
- Tolerance compensation: axial 1.0 mm, radial +/- 4 mm
- Mounted floating on both sides
- 100,000 mating cycles
- Optionally with grounding up to 10 mm²
- No minimum order quantity
- Cable assembly included
ODU Group: global representation with perfect connections
The ODU Group is one of the world’s leading suppliers of connector systems, employing 2,500 people around the world. In addition to its company headquarters in Muehldorf a. Inn (Germany), ODU also has an international distribution network, production and product development sites in Sibiu/Romania, Shanghai/China, Tijuana/Mexico and Camarillo/USA. ODU combines all relevant areas of expertise and key technologies including design and development, machine tooling and special machine construction, injection, stamping, turning, surface technology, assembly and cable assembly. The ODU Group sells its products globally through its sales offices in China, Denmark, France, Germany, Hong Kong, Italy, Japan, Korea, Romania, Sweden, UK and the US, as well as through numerous international sales partners. ODU connectors ensure a reliable transmission of power, signals, data and media for a variety of demanding applications including medical technology, military and security, automotive, industrial electronics, and test and measurement.
