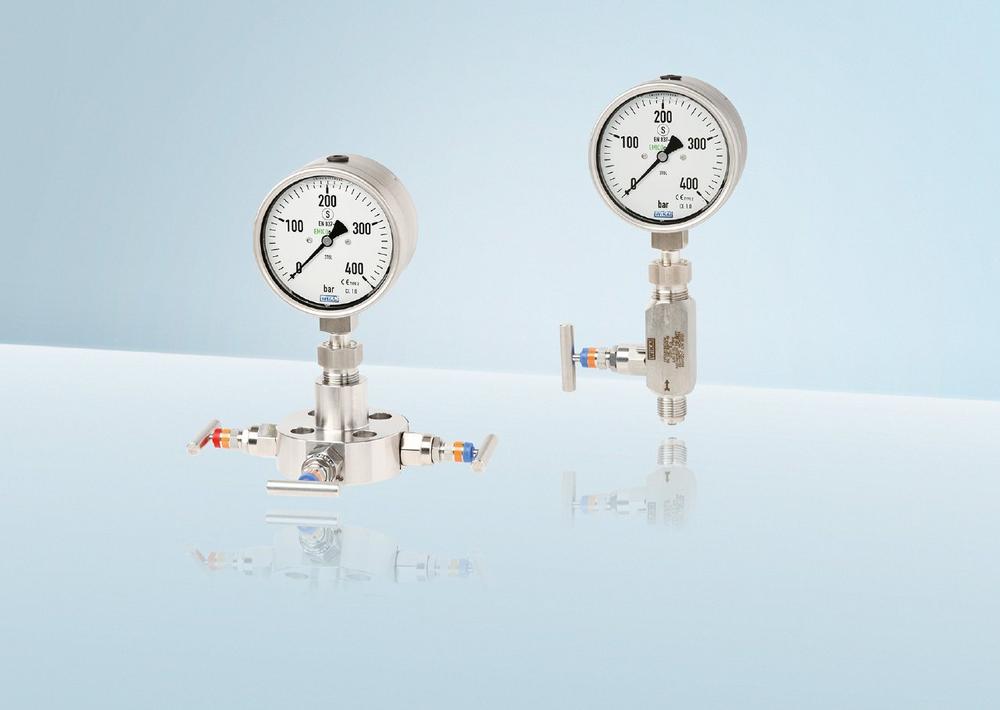

An easily rotating adapter with a special sealing packing connects the measuring instrument and the valve. The system is fully leak-tested in accordance with the requirements of TA Luft (VDI 2440) for fugitive emissions. The EMICOgauge measures pressures from 0 to 420 bar or 6,000 psi. In the event of a fault due to high overpressure, the S-3 safety version protects the user from injury.
The compact measuring system can be put into operation immediately after delivery. The freely rotating swivel adapter allows 360° positioning of the display and easy dismounting of the measuring instrument, for example, for calibration. The S-3 pressure gauges can be combined with the following valves in fugitive emission design, in accordance with ISO 15848-1 and TA-Luft, to form EMICOgauges: Model IVM monoflange as well as models IV1x and IV2x (block & bleed) needle valves.
As a family-run business acting globally, with over 10,200 highly qualified employees, the WIKA group of companies is a worldwide leader in pressure and temperature measurement. The company also sets the standard in the measurement of level and flow, and in calibration technology. Founded in 1946, WIKA is today a strong and reliable partner for all the requirements of industrial measurement technology, thanks to a broad portfolio of high-precision instruments and comprehensive services.
With manufacturing locations around the globe, WIKA ensures flexibility and the highest delivery performance. Every year, over 50 million quality products, both standard and customer-specific solutions, are delivered in batches of 1 to over 10,000 units. With numerous wholly-owned subsidiaries and partners, WIKA competently and reliably supports its customers worldwide. Our experienced engineers and sales experts are your competent and dependable contacts locally.
