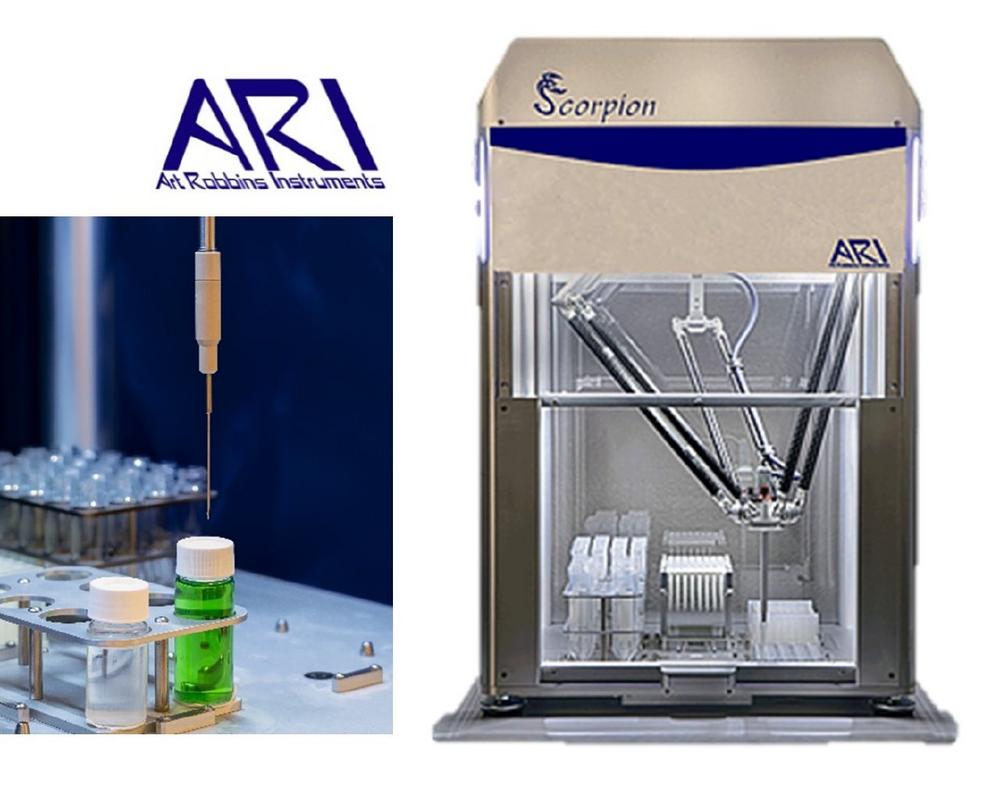

In standard configuration the “Scorpion” can aspirate/dispense volumes from 1 to 1000 µl. However, by a simple exchange of the tip mandrel even volumes of up to 5 ml are possible.
An optional heater/stirrer system for up to 2 deck positions is available for the “Scorpion”. The speed of the stirrer can be set from 50 to 1,500 rpm and samples can be heated up to 300 °C with the heater function.
In total, the "Scorpion” can access up to 6 deck positions with a maximum of 24 racked 50 ml,
96 racked 15 ml tubes or customized glass vials, deep well blocks or other microplates in SLAS/ANSI format, as well as pipette tip racks.
Optimized dispense modes and volumes of the single-channel device and an user-friendly software complete the intuitive system and make the “Scorpion” ideal for nearly every experiment.
Please contact us for further information.
