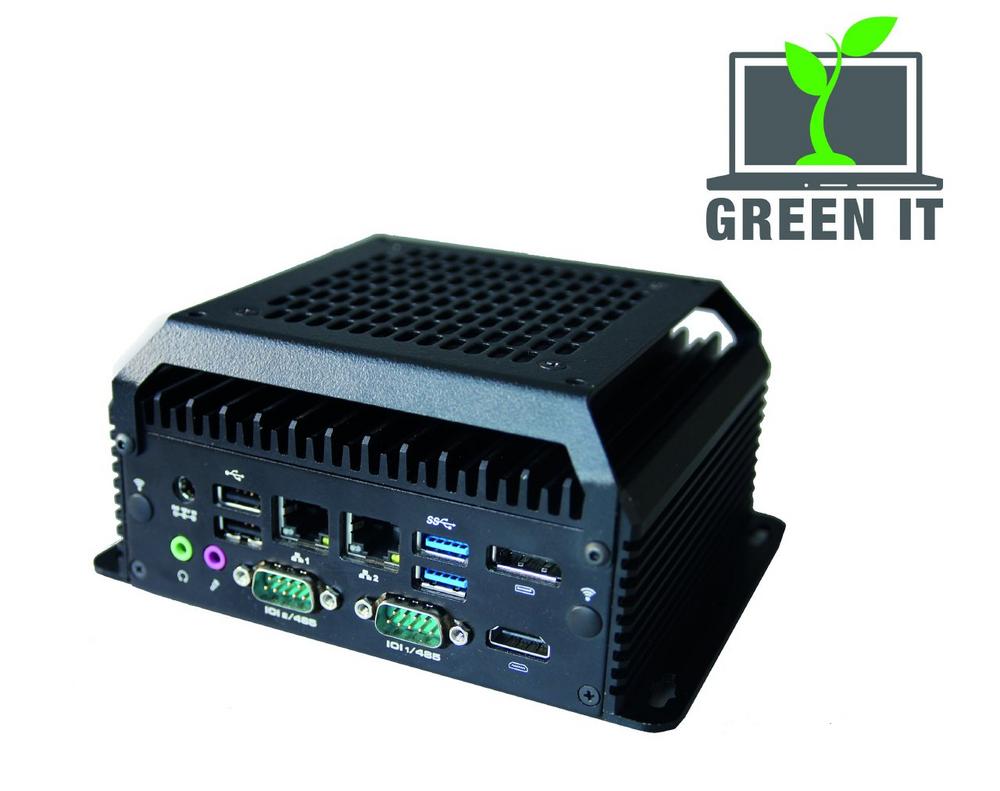

High-performance, energy-saving and low-maintenance. Three features of the new embedded system uIBX-CZ4350 from ICP Germany. Performant due to the Intel® CoreTM i5-10210U processor. The processor unit has four native processor cores and eight execution threads, operates at a base clock speed of 1.6GHz which is upclocked up to 4.2GHz on demand. The uIBX-CZ4350 supports up to 64GB of memory at 2666MHz and comes equipped with 16GB of RAM out of the box. The UHD graphics unit provides up to 4096×2304 pixel resolution. Both a display port and an HDMI port can be used as connection options for monitors for this. Additional devices can be connected to four USB3.0, four USB2.0, two Gigabit network ports and two RS-232/422/485 interfaces. An M.2 2230 with an externally accessible SIM card slot and a Mini PCI Express slot are also available as expansion options. The M.2 2280 slot is equipped with a 256GB NVME SSD on which Windows 10 IoT version 2021 is preinstalled. The uIBX-CZ has pre-activated energy-saving functions on the bios and software side so that the system can be operated as energy-efficiently as possible. The optionally available power supplies are efficiently designed and comply with Energy Efficiency Level VI. Furthermore, the uiBX-CZ4350 is hybrid cooled. The housing of the uIBX-CZ4350 is designed for fanless operation. The additionally attached fan is particularly quiet, low-maintenance and durable. Temperature-controlled, the fan operates in a speed range of 600 to 2300 rpm. At maximum speed, the noise level is below 24dBA. The fan is designed to be low maintenance and can be replaced as needed without having to open the system. The Mean Time to Failure MTTF of the fan is stated to be 150,000 hours. The additional cooling unit reduces the temperature inside the system, which has a positive effect on the service life of the entire system. ICP Germany delivers the system as part of the Green IT campaign with compensated CO2 offsetting for the transport from the manufacturer to the customer.
ICP. Industrial Computer Products …by people who care!
Specifications
- Ultra compact embedded PC
- 10th generation Intel® CoreTM i5-10210U CPU
- 16GB DDR4 SO-DIMM memory
- 256GB M.2 NVME SSD
- Dual GbE LAN
- Extensions: M.2 2230, mPCIE Slot
- DP, HDMI, USB3, USB2, RS-232/422/485 interfaces
- Power input: 12VDC
- Operating temperature: -20°C ~ +60°C
- VESA or wall mounting
Applications
- Automation
- Industrial control
- Data logger
- Industrial PC
- digital signage
- Visualization
- Smart Automation
- Image processing
https://www.icp-deutschland.de/…
Product Link
https://www.icp-deutschland.de/industrie-pc/embedded-pc/ultra-kompakt-uibx-itg-ids/uibx-cz4350-i5-10210u-16gb-256gbssd-win10iot-ks.html
Datasheet
https://files.icp-deutschland.de/produkte/KA024628/web/icp/UIBX-CZ4350-datasheet-20220907.pdf
