On the technical side, increased demands are also placed on medical devices. A medical device rarely stands and works on its own, it is connected to other systems and exchanges data. Important information must be available quickly, fail-safe and in a reliable manner. No matter how connected or technologically advanced medical devices are today, ease of use is a top priority. The risk of errors caused by misleading or ambiguous design elements must be avoided. Correct operation of the medical device is often a question of life and death, which is why it is so important that devices are safe, error-free and quick to operate.

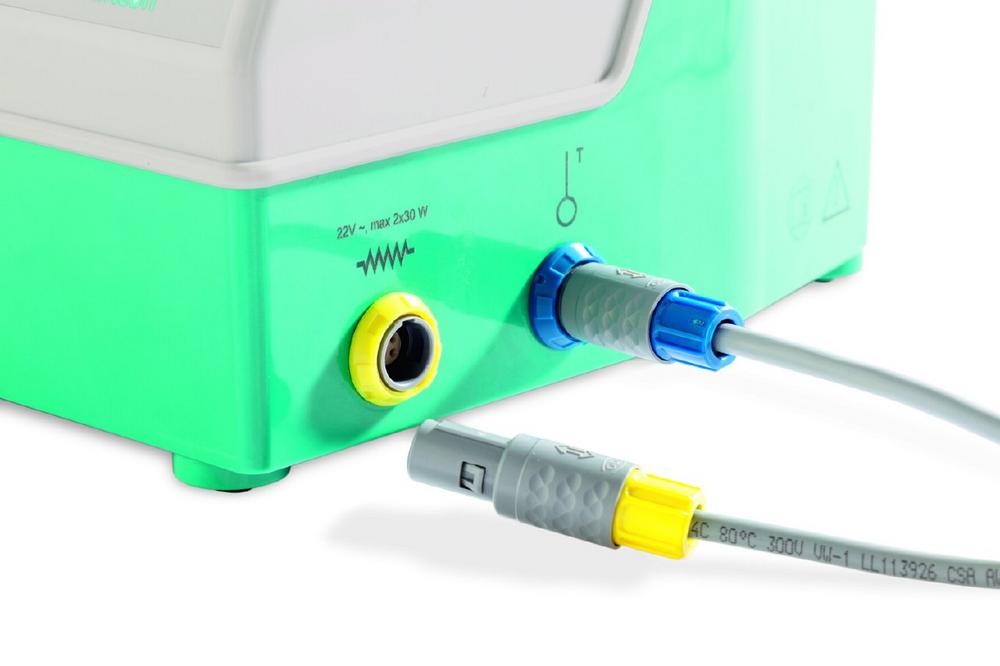

ODU connectors meet many requirements, especially in the medical sector, where, for example, ODU MEDI-SNAP® plastic connectors are generally deployed. The space-saving product design enables high performance in the smallest installation space thanks to small housings, a high pole density and 90° variants. In order to reduce the risk of electric shock to a minimum, the ODU MEDI-SNAP® connectors are touch-protected and designed to fulfil the requirements for 2 MOPP and 2 MOOP in accordance with IEC 60601-1. The systems are available as push-pull or break‐away connectors to enable appropriate mating and de-mating depending on the application. Each connector can be mated to the correct socket thanks to its individual mechanical coding. The connectors are also available in up to seven different colors to further support safe and intuitive operation via visual mapping. The ODU MEDI-SNAP® connectors are available in sizes 1, 2 and 3.5 and are designed in the largest version for up to 41 signal contacts. They are flexible in application and easy to handle.
ODU connectors are designed for optimal ease of use while maximizing patient protection, allowing users to focus on what’s important: The patients.
Further information at www.odu-connectors.com/products/circular-connectors/odu-medi-snap
ODU Group: global representation with perfect connections
The ODU Group is one of the world’s leading suppliers of connector systems, employing 2,600 people around the world. In addition to its company headquarters in Muehldorf a. Inn (Germany), ODU also has an international distribution network and production sites in Sibiu/Romania, Shanghai/China, and Tijuana/Mexico. ODU combines all relevant areas of expertise and key technologies including design and development, machine tooling and special machine construction, injection, stamping, turning, surface technology, assembly and cable assembly. The ODU Group sells its products globally through its sales offices in China, Denmark, France, Germany, Hong Kong, Italy, Japan, Korea, Austria, Romania, Sweden, UK and the US, as well as through numerous international sales partners. ODU connectors ensure a reliable transmission of power, signals, data and media for a variety of demanding applications including medical technology, military and security, automotive, industrial electronics, and test and measurement.
