Small form factor to complete high-performance ecosystem

Highlight of the innovations: COM-HPC Mini

The flagship of congatec’s embedded world showcase are first samples of COM-HPC Mini designs. Launching officially after final PICMG ratification of the new specification, the first high-performance COM-HPC Mini modules will be equipped with the new 13th Gen Intel Core processors (codename Raptor Lake), which represent the latest benchmark for the high end of embedded and edge computing at client level.

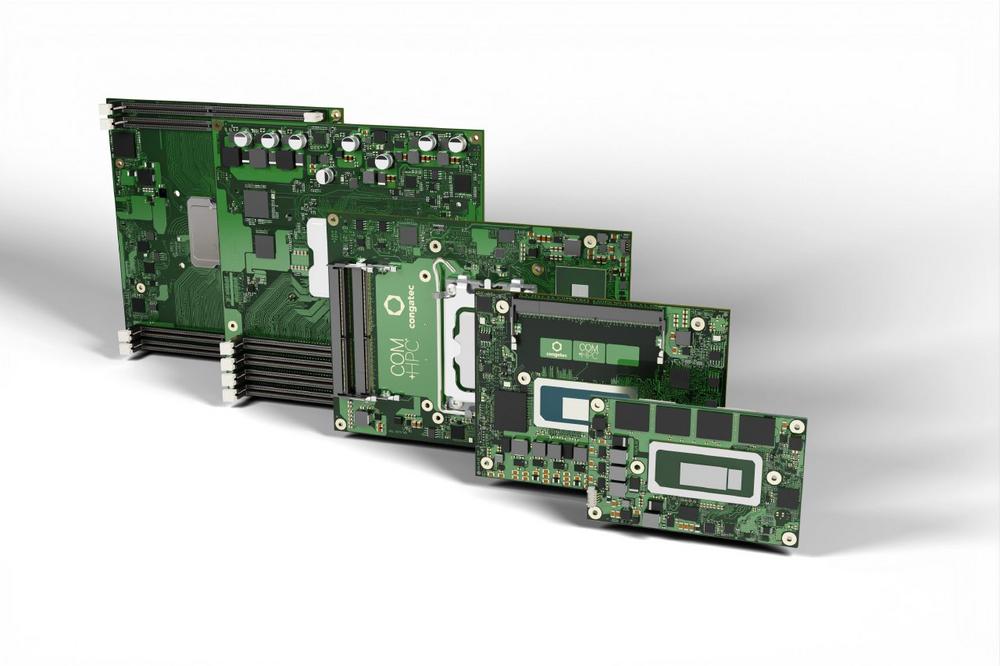

Together with congatec’s recently introduced high-performance Computer-on-Modules with 13th Gen Intel Core processors on COM-HPC Client Size A and Size C, developers now have the entire bandwidth of this new processor generation at their disposal on COM‑HPC. Thanks to state-of-the-art connectivity, the COM-HPC standard opens new horizons for developers of innovative designs in terms of data throughput, I/O bandwidth and performance density that cannot be achieved with COM Express. congatec’s COM Express 3.1 compliant modules with 13th Gen Intel Core processors, on the other hand, primarily help to secure investments in existing OEM designs, for instance by providing upgrade options for more data throughput thanks to PCIe (PCI Express) Gen 4 support.

The COM-HPC Mini form factor predominantly addresses ultra-compact high-performance designs such as DIN rail PCs or rugged handhelds and tablets. However, COM-HPC Mini also solves the Gordian knot that developers of ultra-compact COM Express systems have been facing when wanting to switch to COM-HPC to be able to utilize latest interface technologies. The previously smallest COM-HPC footprint – COM-HPC Size A – did not allow this: Measuring 95×120 mm (11,400 mm²), it is almost 32% larger than the COM Express Compact form factor, which measures 95×95 mm (9,025 mm²). From a footprint standpoint, that’s 25 mm too wide to migrate existing COM Express designs to COM-HPC. Since COM Express Compact is the most widespread COM Express form factor and only the high end currently still uses the even larger COM Express Basic form factor, many developers faced considerable challenges – if only in terms of system design dimensions. But smaller is always possible. That’s why COM-HPC Mini with its 95×60 mm is a real liberator, opening up entirely new high-performance perspectives – in particular for the many ultra-compact system designs.

Further information on COM-HPC and the new COM-HPC Mini form factor can be found at: https://www.congatec.com/en/technologies/com-hpc-mini/
