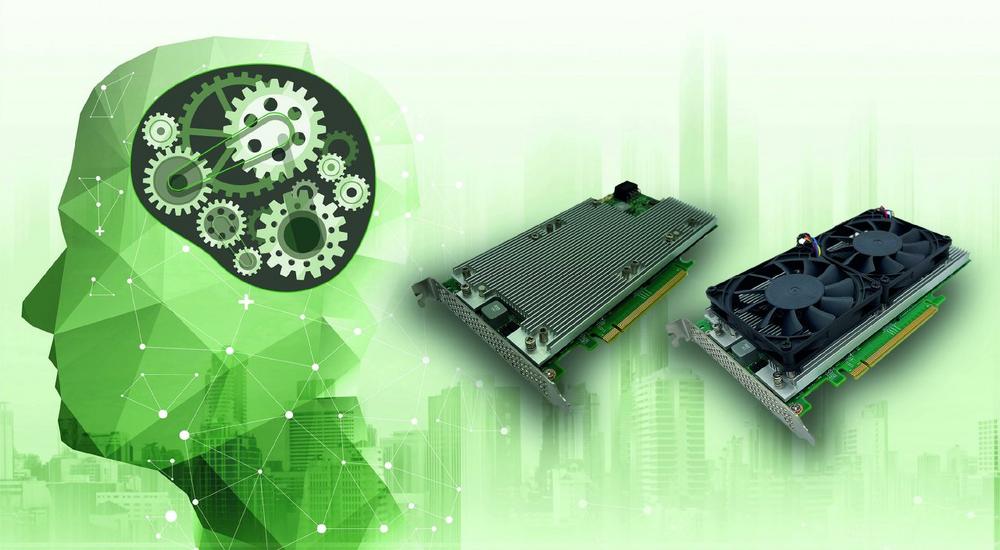

Retrofittable and scalable AI plug-in cards

Variant one with four Hailo-8™ processors achieves a performance of 104 TOPs, 5,300 FPS inference performance when using ResNet, and 900 FPS with YOLO v5m. Variant two with eight Hailo-8™ processors even doubles performance. Machine learning frameworks such as ONNX, Tensorflow and pyTorcg are supported by the MiAi-H8. Furthermore, the expansion card offers GStreamer, Native C/C++ and ONNX Runtime support. Beside the Dataflow Compiler, which enables the model conversion and

-compilation, further software packages are available. HailoRT as runtime environment and driver package. Model Zoo provides pre-trained models. TAPPAS contains the development framework, templates and multi-network pipelines.

Retrofitting of systems is facilitated by compatibility with Linux Ubuntu 22.04, as well as Microsoft Windows 10 Professional or IoT 2021 and Windows 11 Professional. Multiple cards can be run in a single system for scaling. An actively cooled variant is available for more demanding operating temperatures. Here, the quad HailoTM processor version supports -40 °C to 85 °C and the eight HailoTM version -40 °C to +75 °C. Power consumption is typically between 20 and 30 watts, reaching a maximum of 74 watts. The MiAi-H8 underlines its industrial suitability with its design and extended temperature range.

ICP. Industrial Computer Products …by people who care!

Specifications

• Hailo-8™ AI processors
• Four or eight processors selectable
• Active or passive cooling

Applications

• Industry 4.0
• Smart retail
• Smart City
• Deep Neural Network Inferencing
• Factory automation
• Vehicle monitoring

Product Link

https://www.icp-deutschland.de/index.php?stoken=F398D3E9&lang=0&cl=alist&searchparam=miai

Datasheet

https://files.icp-deutschland.de/produkte/KX10499/web/icp/MiAi-H8-datasheet-20230323.pdf
