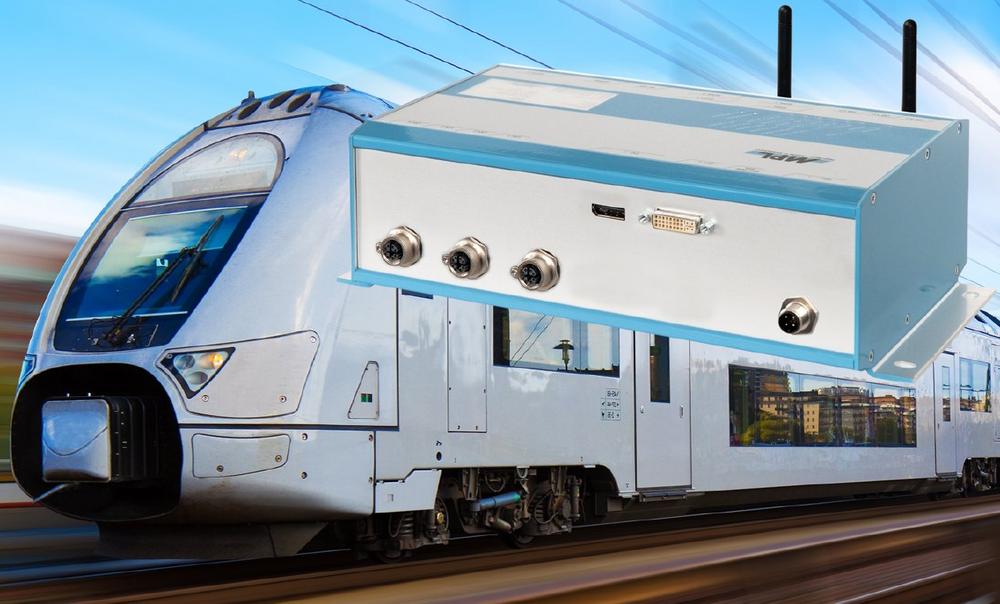

Embedded Railway Solution, EN 50155 certified

The members of the PIP40 Family start with Intel Xeon and offer i7, i3 and Celeron CPUs.
The PIP40 comes with highlights like:
• Up to 64GB registered DDR4 memory, some models with ECCDDR4
• 1x m.2 Key-A (USB2.0, PCIe 2×1, up to 3042 module size, WIFI, …)
• 1x m.2 Key-B (USB3.0, up to 3042 module size, LTE, …)
• 1x m.2 Key-M (SATA or PCIe 4×1, up to 2280 module size)
• 2x mPCIe/mSATA socket with SATA 3.0 & USB 2.0
• 2x SATA 3.0 / 1x NVMe or SATA SSD
• Up to 7 LAN ports
• 4x RS232 or RS422/485 (optional)
• Expansion capabilities for GPGPU on MXM, PCIe (eg. RAID, AI, high end graphics or XMC modules)

MPL’s Railway Solutions are EN50155 certified and undergo environmental testing to ensure reliable performance under a variety of conditions. The PIP3x product family has been tested from -40°C to +85°C, called Tx in the EN 50155 Standard. It also includes the Railways Standard EMC and mechanical tests.

All MPL products are designed for long-term availability and the PIP40 Family will be available for at least 10 years. MPL’s own component stock guarantees repairs for up to 20 years. Extended temperature ranges can be fulfilled and are tested in MPL’s own climatic chambers according customer’s request.

The PIP40 Family is 100% engineered & manufactured by MPL AG in Switzerland. Next to fulfilling EN50155 and IEC 60945 standards, the PIP40 meets or exceeds the most common standards. Particular references are: EN 55022, EN 55024, EN 61000, MIL-STD-461E, EN 60068, MIL-STD-810G, EN 60601, EN 60950, CE, IACS and E10.
