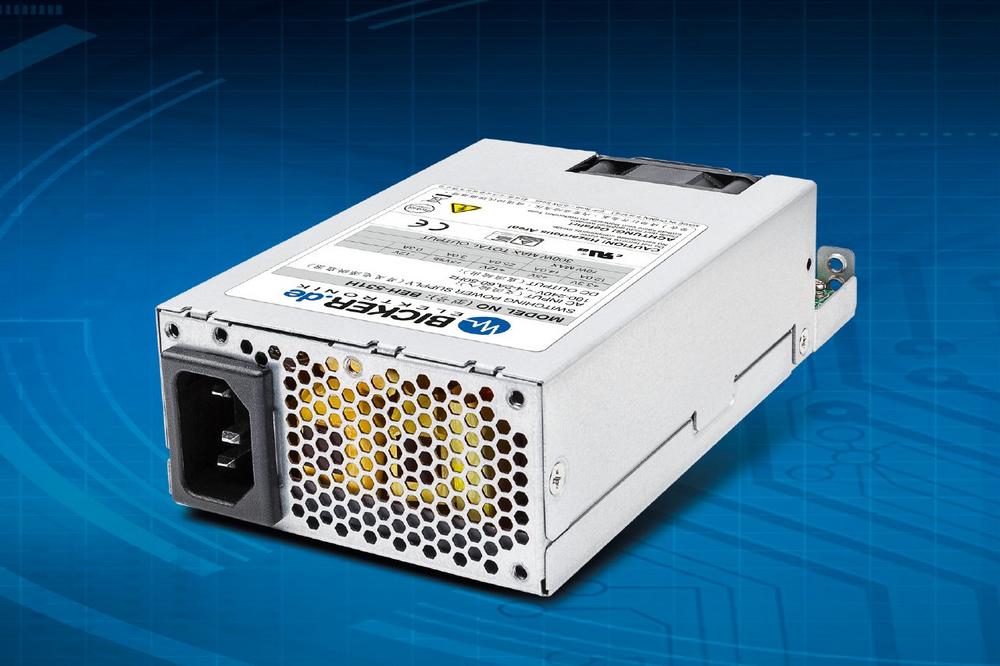

Industrial PC power supply for worldwide use
The BEH-531H does not require a base load at the precisely regulated ATX outputs (+3.3V, +5V, +12V, -12V, +5Vsb) and thus enables flexible use without restrictions. The power supply unit complies with the current safety approval EN/UL 62368-1 and is therefore ideally suited for international use. The wide range input of 90 to 264VAC with active power factor correction (PFC) ensures a reliable power supply in various environments. In addition, the BEH-531H meets the more stringent class B requirements of EN55032 thanks to its excellent EMC characteristics.
Flexible load distribution enables a wide range of applications
The BEH-531H offers flexible load distribution to +3.3V, +5V and +12V. This makes it possible, for example, to use the full load of 300W completely at the +12V output. This opens up numerous areas of application and use with the BEH-531H that cannot be realised with other IPC power supplies. For maximum operational safety, the robustly constructed Flex-ATX power supply also has numerous safety functions such as overvoltage protection and short-circuit protection.
Particularly quiet operation
For particularly quiet operation, the highly efficient BEH-531H switched-mode power supply has temperature-controlled fan regulation for the brand-name fan with a diameter of 4 cm, so that the speed and thus the noise development of the industrial PC power supply is always reduced to a minimum.
Flat 1U PSU design for demanding applications
The flat BEH-531H with 1U height (40.5mm) is the ideal power supply solution for compact industrial PCs or flat IPC server racks in 24/7 continuous operation. Customers can rely on the high quality, flexibility and long-term availability of the particularly powerful industrial PC power supply unit. In addition to a long-term availability of at least 5 years, Bicker Elektronik grants a device warranty of 3 years on the BEH-531H.
All product advantages at a glance
- Robust 300W industrial PC power supply
- Compact Flex-ATX design
- High efficiency up to 91%
- No minimum load required
- Operating temperature range -10…+60°C
- Certified according to EN/UL 62368-1
- Designed for 24/7 continuous operation
- Low noise – temperature-controlled 4cm fan
- Flexible load distribution to +3.3V, +5V and +12V enables a wide range of applications
- Overvoltage and short circuit protection
- Long-term availability at least 5 years
- 3 years warranty
Direct link to BEH-531H:
https://www.bicker.de/en/beh-531h
Bicker Elektronik GmbH, based in Donauwoerth/Germany, has been developing, manufacturing and selling power supplies and UPS systems for over 25 years. These include industrial PC power supplies, industrial and medical grade power supplies, DIN rail power supplies, DC/DC converters and modular UPS systems with durable energy storage devices (Supercaps, LiFePO4, Li-Ion or lead batteries). The portfolio is rounded off by suitable industrial motherboards from leading manufacturers such as Kontron, AAEON, ASUS IOT and Avalue. In addition, Bicker Elektronik offers suitable system components such as memory, M.2 SSD, mSATA, cooling solutions and expansion cards in industrial quality. The extensive storage at the headquarters in Donauwoerth with an online shop guarantees fast and on-time delivery. The company is TÜV certified according to ISO 9001: 2015. The target markets of Bicker Elektronik are Industry 4.0 / IIoT, automation technology, robotics, medical and laboratory technology, measurement and control technology, transportation, maritime, energy, communication and information systems, gaming, POS/POI, digital signage, security and building technology.
