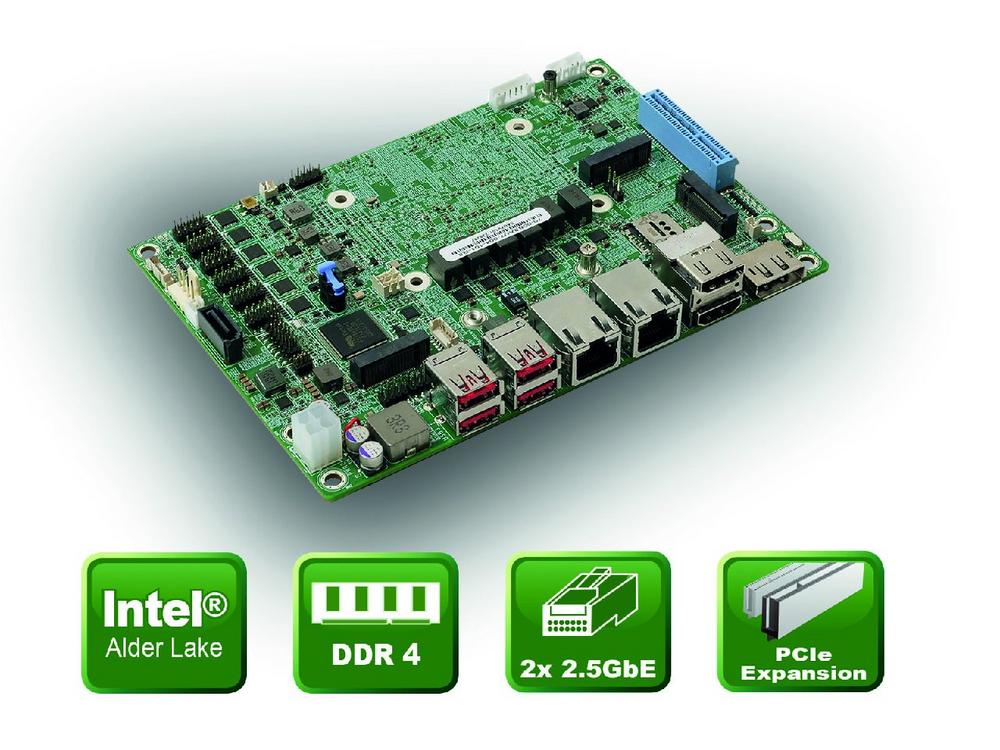

ICP Germany offers two entry-level and two high-performance variants. For simple applications, the NANO-ADL-P-CC with Intel® Celeron® 7305 offers five processor cores, divided into one Performance and four Efficient cores, and a CPU clock speed of 1.1GHz. The NANO-ADL-P-i3C with Intel® Core™ i3-1215U processor offers six processor cores, two Performance and four Efficient cores, and a clock speed of up to 4.4GHz. The two high-performance variants NANO-ADL-P-i7C and NANO-ADL-P-i5C offer ten processor cores, which are divided into two Performance and 8 Efficient cores. The Intel® Core™ i5-1235U has a maximum clock speed of 4.4 GHz and the Intel® Core™ i7-1255U processor a maximum of 4.7 GHz.
All variants are equipped with 8GB LPDDR4x 3200 MHz onboard working memory as standard. Versions with 16GB are optionally available.
All NANO-ADL-P variants offer four independent display ports. Four displays with a resolution of max. 4K can be operated simultaneously on the two HDMI, the DisplayPort and the iDPM connector. The iDPM port supports iDMP adapters and offers eDP, LVDS or VGA connectivity. Furthermore, a PCIe x4 slot, an M.2 B key slot with SIM header and an M.2 A key slot are available as expansion options. Two 2.5GbE LAN ports with Intel® I225V controller, SATA (6Gb/s), USB 3.2 Gen2x1, RS-232, RS232/422/485 and USB 2.0 complete the offer. The NANO-ADL-P are operated with an input voltage of 12VDC and can be used at an ambient temperature of 0°C to 60°C.
ICP. Industrial Computer Products …by people who care!
Specifications
- EPIC Single Board Computer
- 12th Gen. Intel® Mobile Alder Lake-P on board SoC
- Intel® Celeron® and CoreTM i3,i5,i7 variants
- 8GB or 16GB LPDDR4x 3200 MHz onboard RAM
- HDMI, Display Port, iDPM graphics connectors
- SATA, 2.5GbE, USB 3.2, RS-232, RS232/422/485
- 2 and PCIe x4 expansion
Applications
- Image processing
- Automation
- Control
- Panel PC and embedded systems
- Automats
- Display systems
- Ultra flat embedded systems
Industrial PC Systems
Product Link
https://www.icp-deutschland.de/index.php?lang=0&cl=alist&searchparam=nano-adl
Datasheet
https://files.icp-deutschland.de/produkte/KC003254/web/icp/NANO-ADL-P-datasheet-20230406.pdf
