Power-saving industrial PC with 10 watt TDP
The BOX J6412 is equipped with a powerful Intel® Celeron® J6412 processor with up to 2.6 GHz on 4 cores. With the support of up to 32GB RAM and an NVMe SSD of up to 2TB, even demanding applications can be mastered. Despite the high performance, the Mini-PC is extremely energy-efficient and has a TDP of just 10 Watts. Thanks to the fanless housing and a temperature range of 0°C to +50°C, the system can also be used where it gets dusty, damp or hot, such as in production halls or in the industry in general.
4K Digital Signage player
The Intel® Celeron® CPU comes with an integrated Intel® UHD graphics unit, which also enables applications in the field of digital signage. The two HDMI 2.0 ports on the back of the case ensure that content can be played on up to two screens at the same time. Of course in a resolution of 4096×2160 @ 60Hz (4K).
Small housing, large variety of connections

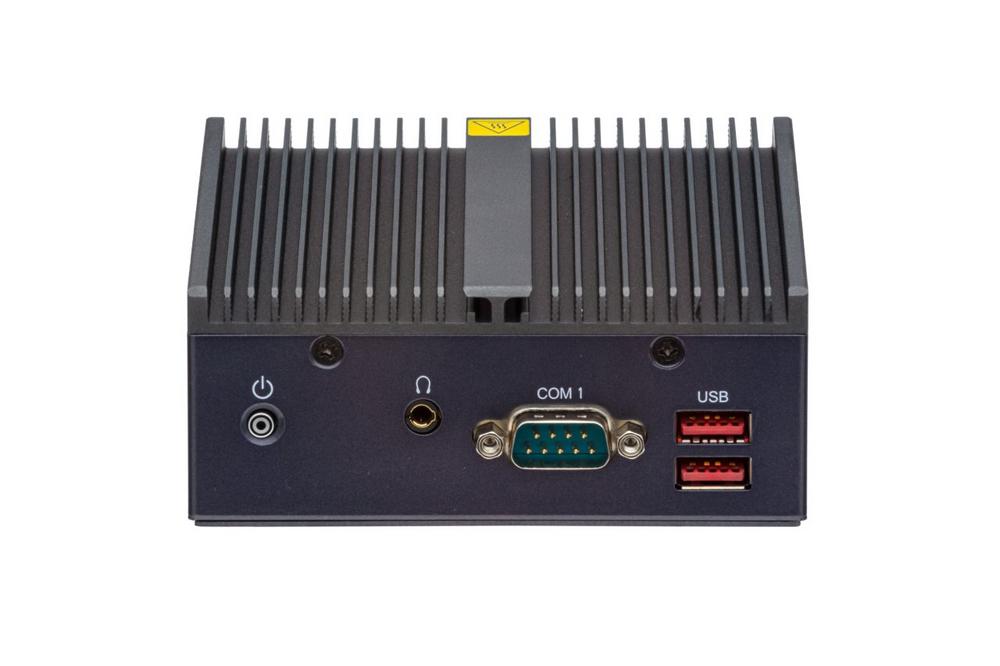

The main criterion for being called “BOX” is to come with very small dimensions. The BOX J6412 of course, fulfills this with dimensions of only 118 x 109 x 44 mm (W x D x H) – which corresponds to a volume of just 0.9 liters. But the case still has enough space for the most important interfaces. The power button, the audio connection (line out), the COM RS232 and two of the four USB 3.2 Gen 2×1 ports are located on the front. The other two USB 3.2, two Gigabit LAN ports and the two HDMI 2.0 are on the back panel.
Optional operating system and WiFi
In contrast to its predecessor, the BOX J6412 is compatible with Windows 11. Windows 10 IoT and Linux Ubuntu version 22.04.2 can also be installed. There is also the option to expand the system with WiFi. For this purpose the housing has 2 antenna connections. A wall bracket is already included.
The new BOX J6412 is the perfect system for anyone looking for a powerful yet energy-saving Mini-PC. The latest BOX is particularly suitable for applications where little space is available. Whether in the digital signage area (thanks to the 4K resolution) or in the industrial area thanks to the fanless housing and the extended temperature range. The Mini-PC is available now and can be configured and ordered according to your requirements at www.spo-comm.de/en.
Highlights and technical data at a glance:
- CPU: Intel® Celeron® J6412, 4x 2 GHz (up to 2.6 GHz)
- GPU: Intel® UHD-Graphics
- RAM: up to 32 GB DDR4
- 1x SSD: up to 2 TB NVMe
- Max. Resolution: 4096×2160 @ 60Hz (4K)
- 2 independent displays
- Dimensions (W x D x H): 118 x 109 x 44 mm
- Wall mount included
- Ambient conditions: 0°C up to +50°C at 0-90% at non-condensing humidity
Connectors:
- 4x USB 3.2 Gen 2×1
- 2x HDMI 2.0
- 1x COM RS232
- 2x Gigabit LAN
- 1x Audio port (LINE-OUT)
- WiFi optional
