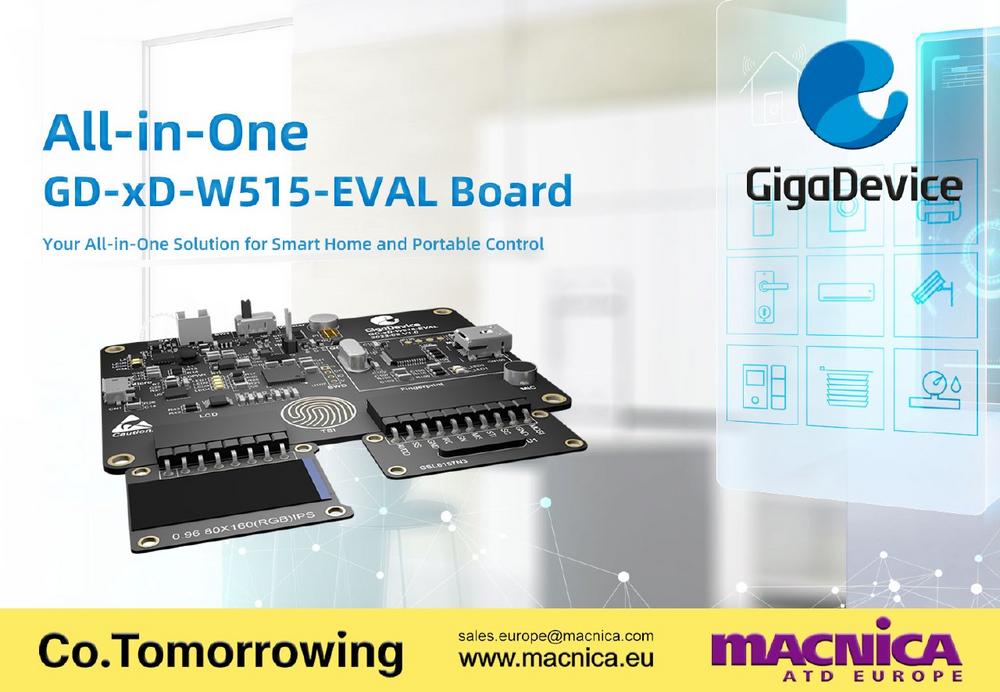

The GD-xD-W515-EVAL Board is the first evaluation kit in the xD series, it comprises a mainboard, a fingerprint board, and an LCD board within a compact footprint. It can be powered by either a battery or the Mini-USB interface of the GD-Link programmer. Through the integration of diverse GigaDevice’s high performance MCU (GD32W515PIQ6) , SPI NOR flash (GD25Q128E), capacitive fingerprint Sensor (GSL6157), battery management IC (GD30BC2416), and high-performance power IC (GD30LD1002), this EVAL board delivers tailored solutions to customers across a spectrum of applications, such as smart home HMI, smart door lock, and portable device control.
Key Features:
Privacy and Security: Supports secure fingerprint recognition and data management with encryption & authentication algorithm provided by GigaDevice’s fingerprint sensor and MCU.
Fast and Secure Data Access: Includes small package NOR Flash for accessing data via the QSPI interface at a clock frequency of 45MHz. Data can be encrypted/decrypted using the MCU’s Cryptographic Acceleration Unit (CAU).
High Efficiency Battery Charging: Supports battery charging currents of up to 1.5A.
System Protection: Provides USB power-on and wake-up voltage monitoring as well as battery voltage and power monitoring.
Accurate Battery Power Estimation: Accurately calculates battery power using current and voltage detection, optimized by the battery power calculation algorithm.
Touch Operation: Includes a capacitive touch key controlled by the MCU’s Touch Sensing Interface (TSI) for easy and quick operation.
Multiple Information Output Choices: Equipped with a flat vibration motor, multi-channel LEDs, and an LCD screen for versatile information output.
Multi-Dimensional Applications Support: Features an onboard high sensitivity MIC for MCU wake-up and a high-power port to support power-hungry components, such as heating coils.
Onboard Debug and Programming: Includes the GD-Link for on-chip debugging and MCU flash programming.
Availability and Pricing
Please visit: www.gigadevice.com/… , and you will have a chance to order a free W515 evaluation board.
