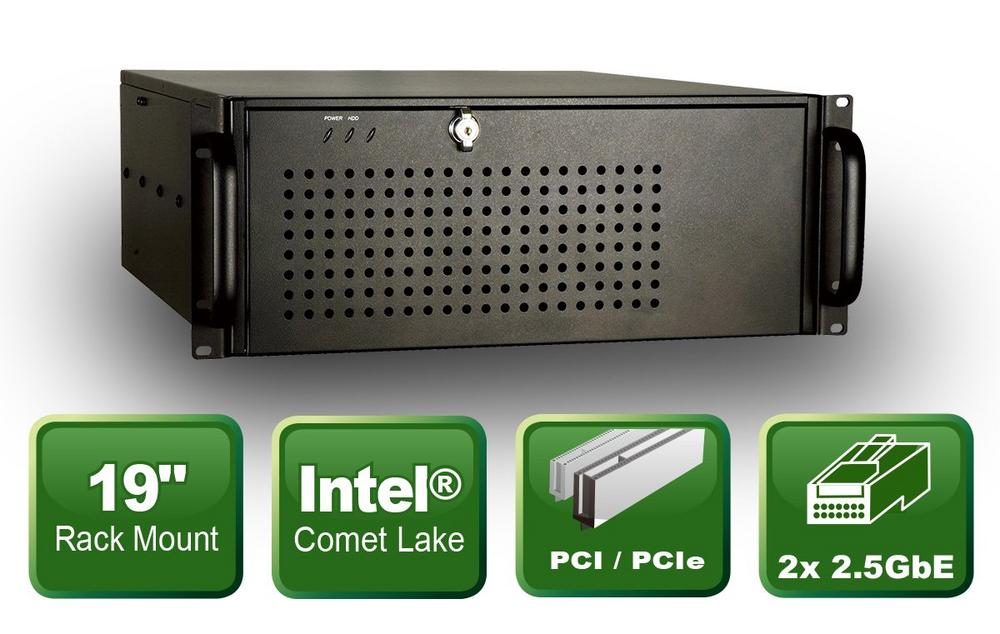

Short 19 inch system with 10th generation Intel® Core™ i3

As a powerful and particularly space-saving solution in the rack cabinet, ICP Germany offers an exciting complete system. The revival of the RACK-3400GB half-size 19" rackmount chassis as a ready-to-use system. The heart of the system is a CPU card with Intel® Q470 chipset. The card is pre-equipped with a 10th generation Intel® Core™ i3 processor. This works with four cores, 8 threads and a base clock frequency of 3.60 GHz. The maximum Turbo frequency is 4.30 GHz. Variants with Intel® Core™ i5/i7/i9 are also optionally available. The system is equipped with 8GB DDR4 memory, which can be expanded up to 64GB. The RACK-3400GB-KS offers one 3.5" drive bay as well as two 5.25" bays. In the 3.5" bay, a removable frame for two 2.5" SSDs is installed, which is equipped with a 128GB SSD Wide Temp industrial SATA SSD. Two USB3.2 Gen1, one USB3.2 Gen2 port, one HDMI port and two Intel® I225V 2.5GbE LAN controllers are available for peripheral devices and network connection. Internally, two USB2.0 and two RS-232 interfaces are prepared. Furthermore, an optical DVD burner is installed in the system.

Three PCI and two PCIe x16 slots with x8 signal each are available for expansion with add-on cards. For the power supply, a 500 Watt power supply unit of the efficiency class 80+ Platinum is installed.
The RACK-3400GB-KS can be used in a temperature range of -20°C~50°C.

ICP Germany delivers the 19" system with Windows 10 IoT Enterprise as standard.

Specifications

• 19" half-size chassis
• 10th generation Intel® Core™ i3
• Intel® Q470 chipset
• 128GB 2.5" SATA SSD in removable frame
• 8GB DDR4 RAM (max. 64GB)
• Optical drive
• Windows 10 IoT Enterprise
• 3x USB3.2, 1x USB2.0, 1x HDMI
• 2x 2.5GbE LAN

Applications

• Automation
• Industrial control
• Industrial PC
• Machine building
• 19" rack cabinet
