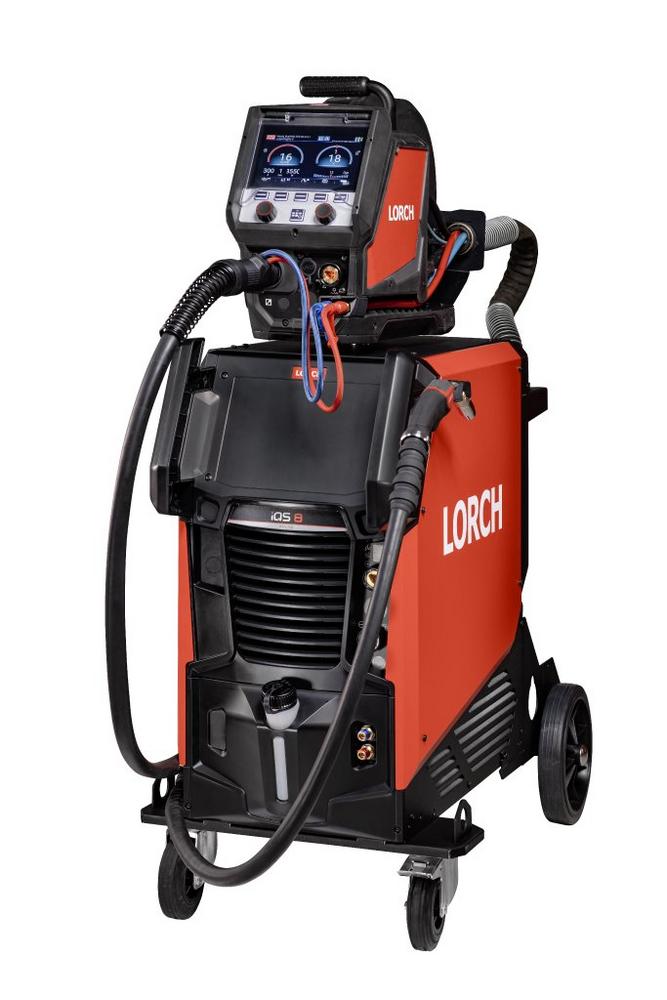

Diverse and flexible uses – the new MF-09 wire feeder by Lorch

Long weld seams, large parts, or difficult welding situations, as in ship or railway constructions – the new, customisable MF-09 wire feeder by Lorch perfectly adjusts to any production environment with its modular build and mobility. Thus, it increases the working radius around the welding source in the blink of an eye by intermediate hose packages that can be installed on the feeder case easily. The MF-09 can be combined with a wire reel housing or used at heights as a feeder version without a housing. The easily accessible wire feeder is sophisticated in every detail and offers a perfectly coordinated quick exchange system: Simplified without screws, it allows quick change of the robust and durable Lorch feed rolls. Whether the feeder case is water- or gas-cooled is determined by the matching intermediate hose package, to be easily attached and installed with a single click by the welder.

Lorch meets practical requirements regarding mobility and transport capacity of the MF-09 with three design elements: Sliding rails in the bottom make the case slide more easily when used on the ground, preventing damage to the feeder case housing as it is pulled back and forth. To render the feeder case even more mobile, 65-millimetre rollers or a 125-millimetre heavy-duty chassis set can be attached. The reliable feeder case fixture for transport and storage on the system warrant a simple and stable mandrel solution and a sophisticated floor design that helps the welder find the matching position for latching most easily.

Lorch considers the system idea in the MF-09’s user interface (HMI system) having been carried over from the iQS inverter platform unchanged. It has the advantage of being user-friendly, since the welder is familiar with user guidance and can make full use of all practical features of the iQS-system just as always. This includes free choice between touch and rotary pushbutton operation, the intuitive operating concept, or a seven-inch TFT display that allows reading of the displayed welding data even from a greater distance. The welder can keep the an eye on the basket spool in view via a lateral window in the feeder case housing, while a lamp integrated in the wire feed space facilitates wire change even in badly lit situations. Since operator protection is typical for Lorch, the MF-09 housing is completely made of plastic, making it fully insulated and very well suitable for safety-technically challenging areas of use.

Jonas Kappel, head of product management and marketing at Lorch:
"The entirely new wire feeder MF-09 specifically developed for the iQS gives your customers the perfect all-round-carefree package for production. Flexible configuration, mobile and maximally user-friendly, it offers the matching solution for any usage scenario."
