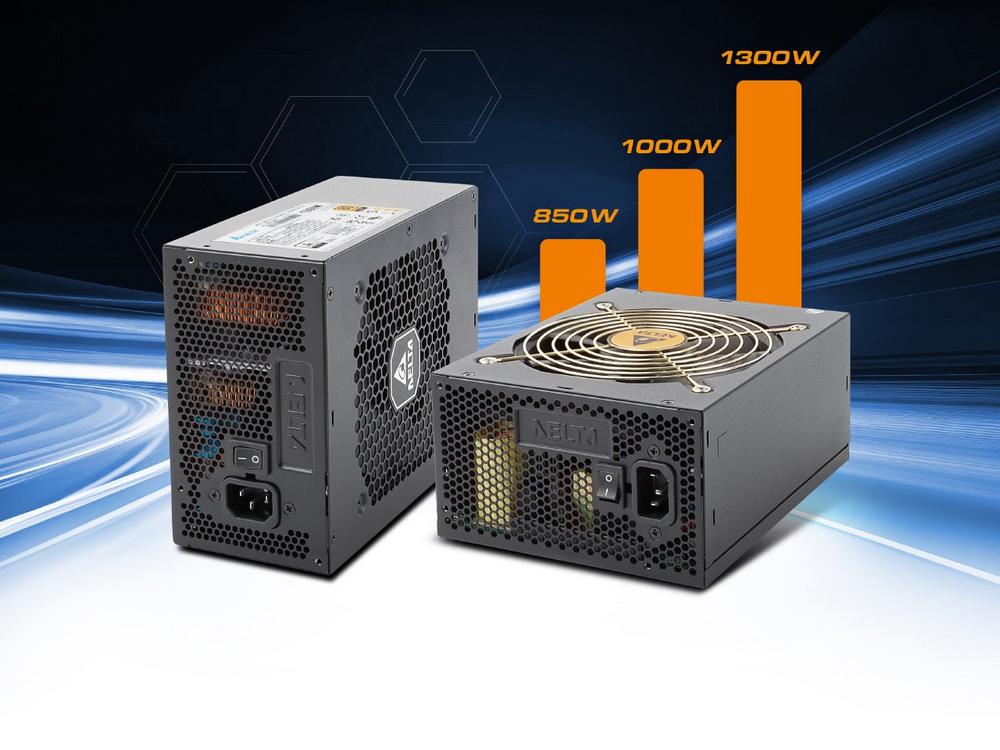

High-Performance PC PSU series for compute and graphics-intensive applications
The GPS series consists of three models with 850W, 1000W and 1300W. The particularly energy-efficient power supply design achieves efficiencies of up to 92%, thus obtaining 80PLUS® Platinum or Gold certifications. A minimum load of 0A on all output voltages and particularly powerful +12V rails ensure the safe and reliable power supply of current motherboards with the latest processor generations, making the GPS series the perfect solution for ongoing applications and future projects.
The outstanding reliability of the new PSU series is the result of using first-class components of the highest quality. The precisely regulated AC/DC switching power supplies not only feature a modular plug-in cable harness but also offer a variety of ATX outputs to power motherboards, expansion cards, and peripherals. For worldwide use, the Delta GPS series features a wide-range input of 90-264 VAC with active PFC as well as international certifications.
All advantages of the GPS series at a glance
- High-performance industrial ATX power supplies 800W / 1000W / 1300W
- Efficiency of up to 92%
- 80PLUS® Platinum/Gold certification
- Strong +12V outputs for the latest motherboard generation
- Designed for 24/7 continuous operation
- No minimum load required
- AC wide-range input with active PFC
- Current Harmonic class D
- Extensive protection functions OVP, OCP, OTP, SCP
- Quiet fan for a pleasant working environment
- High flexibility through modular cable harness
- AC cable (EU) included
- International certifications (including EN/UL62368-1)
- Optimal price-performance ratio
- 5+ years long-term availability
- 3 years warranty
- Available from stock (www.bicker.de)
Delta GPS-1300CBA | 1300W | 80PLUS® Platinum
The most powerful model in the series offers 1300W and four +12V outputs (each 50A max), providing enormous reserves for high-performance systems with the latest processor generation, such as in the fields of Artificial Intelligence (AI) and image processing (Vision, Inspection, Imaging). With a particularly high efficiency of up to 92%, the Delta GPS-1300CBA achieves 80PLUS® Platinum certification. The switching power supply features an extensive and modular plug-in cable harness. The AC cable (EU) is included.
Delta GPS-1000EBA | 1000W | 80PLUS® Gold
With 1000W and a strong +12V output (83.33A max), the high-performance PC power supply supplies particularly performant and fully equipped industrial motherboards with corresponding expansion cards for graphics-intensive applications. With a high efficiency of up to 90%, the Delta GPS-1000EBA achieves 80PLUS® Gold certification. The robustly constructed switching power supply features an extensive and modular plug-in cable harness. The AC cable (EU) is included.
Delta GPS-850LBA | 850W | 80PLUS® Gold
The high-performance PC power supply with 850W and a strong +12V output (70.84A max) reliably supplies fully equipped industrial motherboards of the latest generation for compute-intensive applications. With a high efficiency of up to 90%, the Delta GPS-850LBA also achieves 80PLUS® Gold certification. The high-quality switching power supply features an extensive and modular plug-in cable harness. The AC cable (EU) is included.
One-stop shop for system development
Bicker Elektronik not only offers reliable and powerful power supply solutions and UPS systems but also a wide selection of industrial motherboards from leading manufacturers. In addition, the portfolio includes high-quality system components in industrial quality such as matching embedded processors, SO-/DIMM memory modules, M.2 embedded modules, expansion cards, as well as active and passive cooling solutions. The long-standing experience and expertise of the specialists at Bicker Elektronik ensure the optimal coordination of all components. Together with customers and system developers, they find the ideal solution for the specific requirements of each application after thorough design-in consulting and analysis. Individual components can also be conveniently ordered worldwide 24/7 via the webshop at www.bicker.de.
Direct link to the topic page and related products:
https://www.bicker.de/en/high-power-ipc-atx-12v-power-supply-series-delta-gps-850lba-1000eba-1300cba-
Product link GPS-850LBA (850W): https://www.bicker.de/en/gps-850lba
Product link GPS-1000EBA (1000W): https://www.bicker.de/en/gps-1000eba
Product link GPS-1300CBA (1300W): https://www.bicker.de/en/gps-1300cba
Bicker Elektronik GmbH, based in Donauwoerth/Germany, has been developing, manufacturing and selling power supplies and UPS systems for over 25 years. These include industrial PC power supplies, industrial and medical grade power supplies, DIN rail power supplies, DC/DC converters and modular UPS systems with durable energy storage devices (Supercaps, LiFePO4, Li-Ion or lead batteries). The portfolio is rounded off by suitable industrial motherboards from leading manufacturers such as Kontron, AAEON, ASUS IOT and Avalue. In addition, Bicker Elektronik offers suitable system components such as memory, M.2 SSD, mSATA, cooling solutions and expansion cards in industrial quality. The extensive storage at the headquarters in Donauwoerth with an online shop guarantees fast and on-time delivery. The company is TÜV certified according to ISO 9001: 2015. The target markets of Bicker Elektronik are Industry 4.0 / IIoT, automation technology, robotics, medical and laboratory technology, measurement and control technology, transportation, maritime, energy, communication and information systems, gaming, POS/POI, digital signage, security and building technology.
